    Product :
    Frequency Sources

    inner-page-bg
    Quantic Wenzel - Our Products
    Quantic Wenzel - Our Products

    Product Type:

    Frequency Sources

    Description:

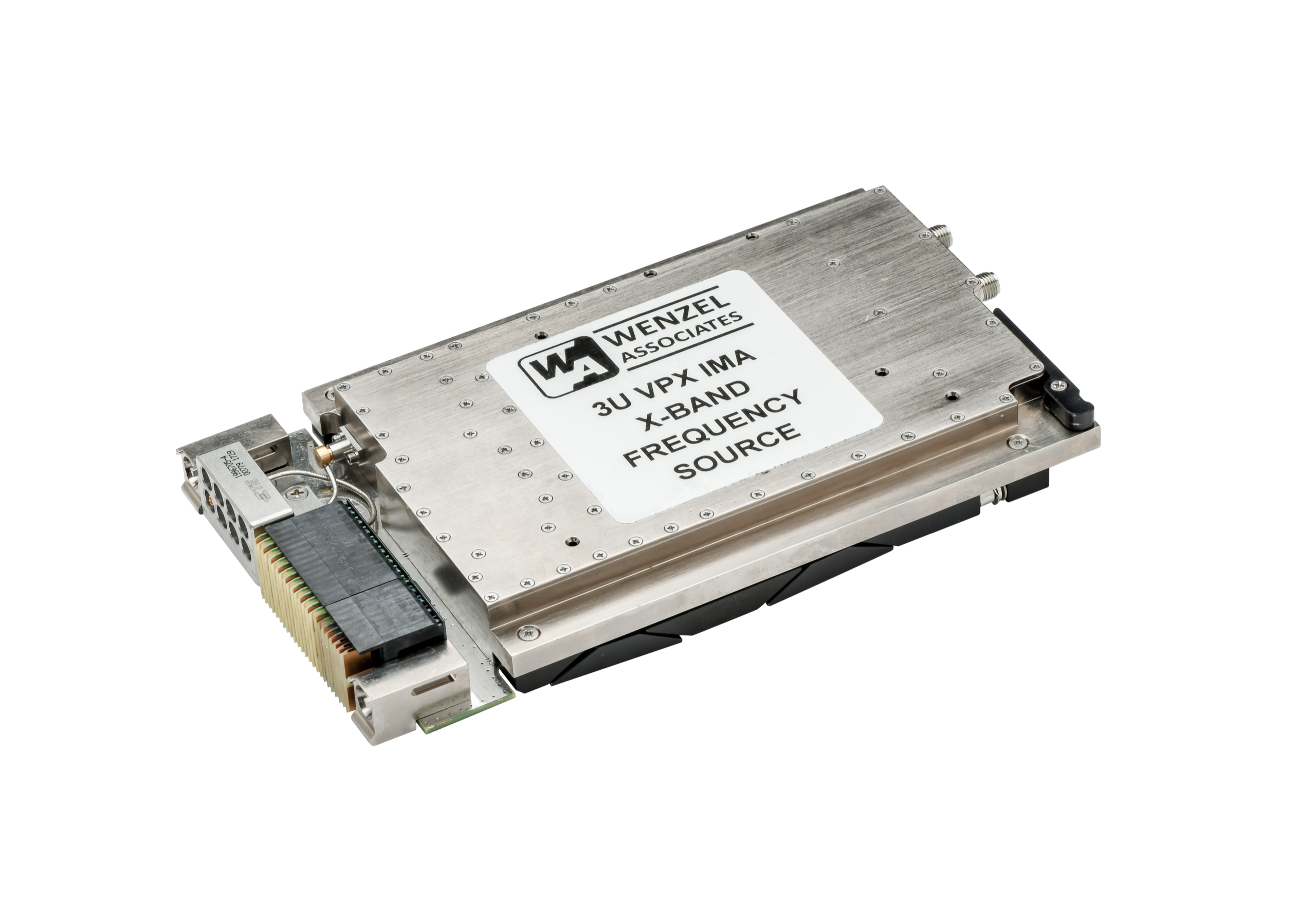

    Quantic Wenzel offers a wide variety of low noise frequency sources configured as sub-assemblies or rack mounted instruments with one output frequency or multiple output frequencies to 16 GHz. Each source includes one or more industry leading Ultra Low Noise Ovenized Crystal oscillator, Blue Tops RF Modules and other hardware necessary to provide a high performance frequency source with unparalleled phase noise performance. Custom features, custom modules and custom systems are available with short development time and low cost.

    Model Description Application Phase Noise (100 kHz) Size

    Golden Frequency Source for Mixing

    • Golden Frequency Source for Mixing

    • GMXO-FR and Mixer within a Benchtop Enclosure
    • 4 GHz, 8 GHz & 12 GHz Golden Phase Noise Signals
    • Electrical Tuning: ±3 ppm min., 0 to +10 VDC
    • Onboard Mixer (Marki M2B-0218)
    • Output: Sine, +13 ±2 dBm, each output
    • Low Noise Voltage Regulators Included
    • 110-240 VAC, 50/60 Hz AC Adapter Provided; +18 VDC to Box
    • Custom Frequencies; Mixer Options Available Upon Request

    General Purpose Reference
    Down-Conversion
    Phase Noise Testing

    		 4 GHz: -146 dBc/Hz 8 GHz: -139 dBc/Hz 12 GHz: -135 dBc/Hz 8 x 12 x 1.72”
    Model Description Application Phase Noise (100 kHz) Size

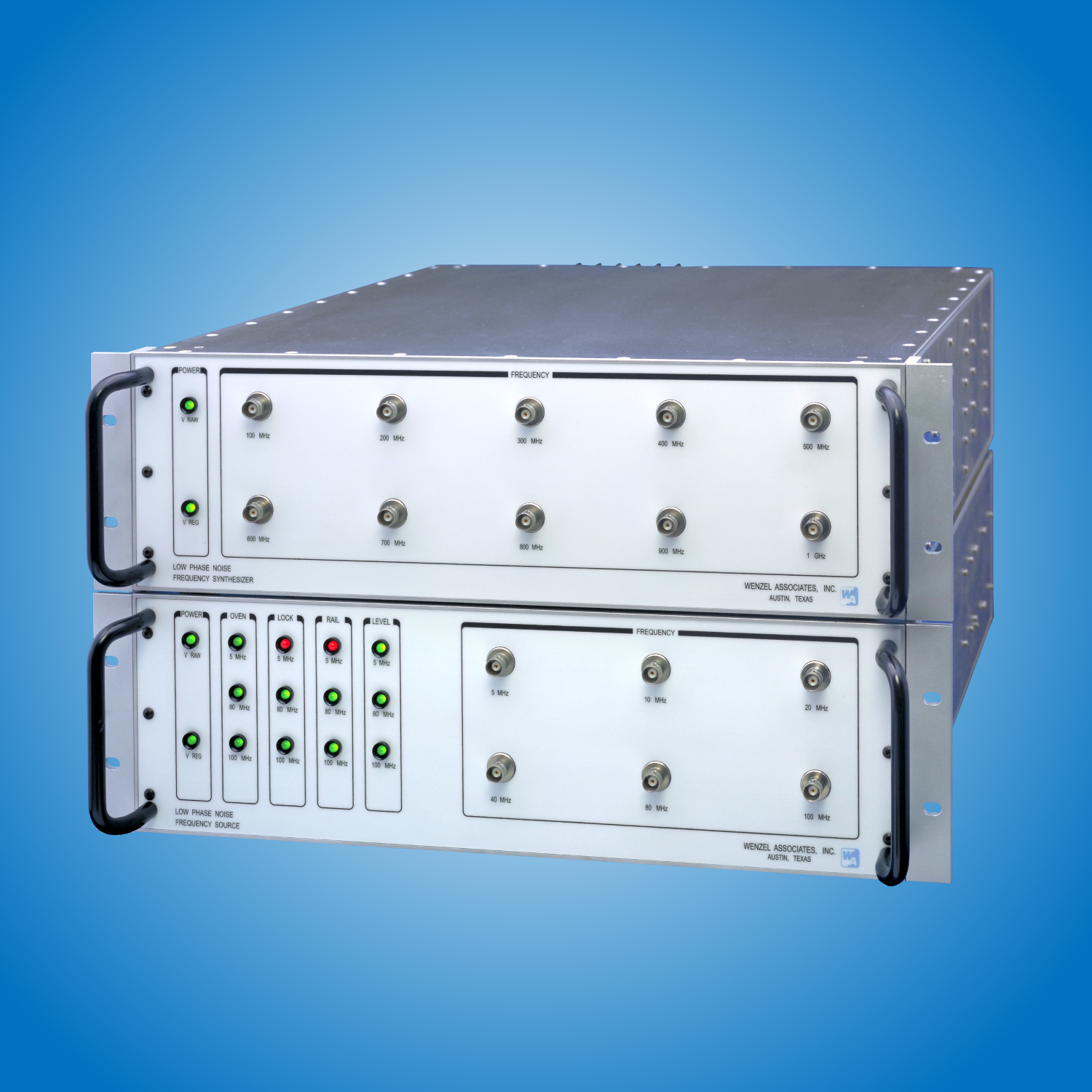

    Low Noise Rack Mount

    • Crystal Oscillator(s) and/or RF Modules Mounted within a Chassis

    • 19″ Rack Mount Chassis (1U, 2U, 3U & 5U Options)
    • Selected Frequencies from 5 MHz to 18 GHz
    • Multiple Frequency / Multiple Output Options
    • Low, Ultra Low and Golden Phase Noise Performance Options
    • Phase Locking with External Reference Option
    • Low Noise Voltage Regulators Included
    • Supply Voltage: 120 VAC, 240 VAC 50/60 Hz or Specified DC Supply

    Bench Reference
    Radar Test Set
    Communication Systems

    		 Frequency Specific (See Spec Sheets) 19" Rack Mount Chassis 1U, 2U, 3U, & 5U Options
    Model Description Application Phase Noise (100 kHz) Size

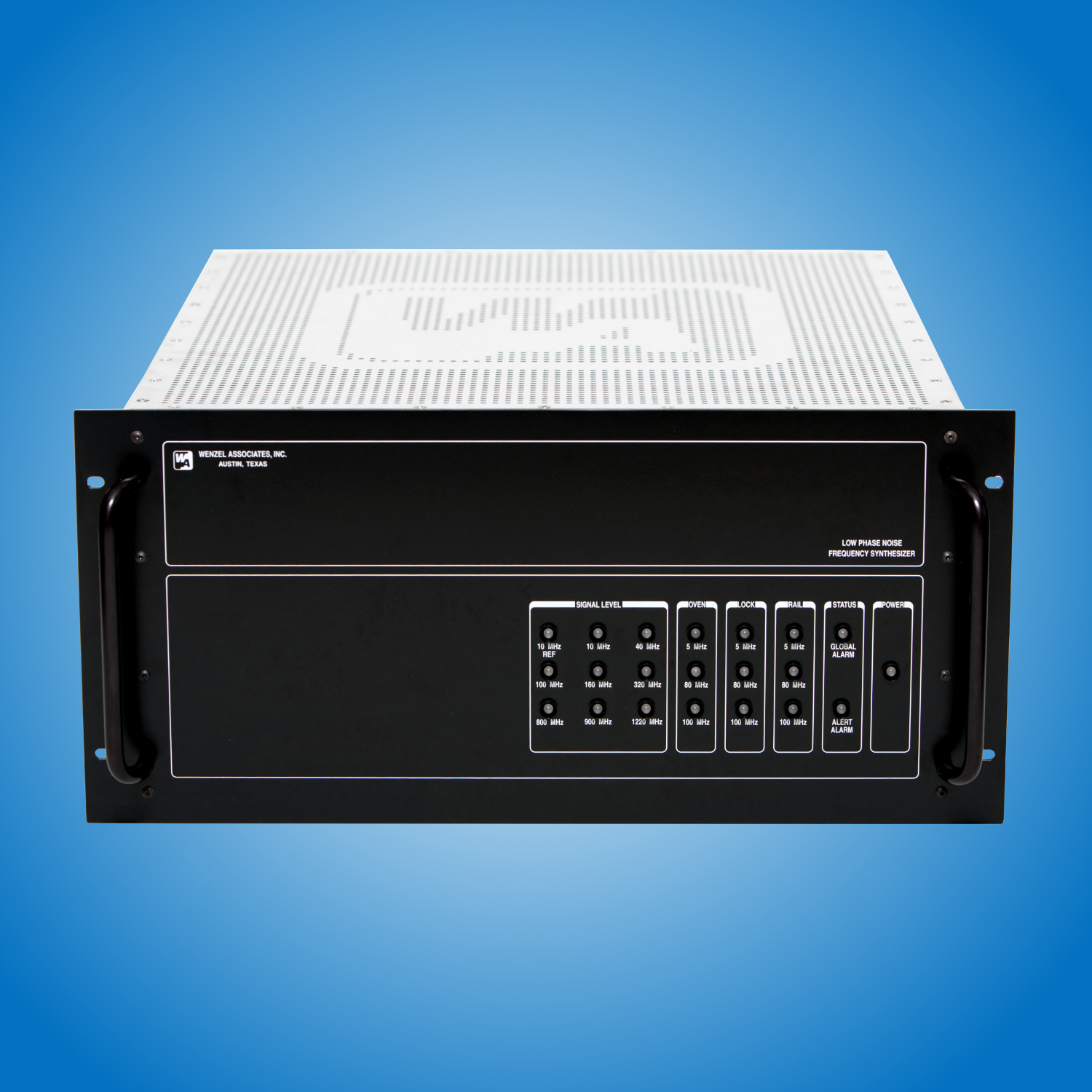

    Custom Rack Mount

    • Crystal Oscillator(s) and/or RF Modules Mounted within a Chassis

    • 19″ Rack Mount Chassis (1U, 2U, 3U & 5U Options)
    • Customer Selected Frequencies from 5 MHz to 18 GHz
    • Multiple Frequency / Multiple Output Options
    • Low, Ultra Low and Golden Phase Noise Performance Options
    • Phase Locking with External Reference Option
    • Low Noise Voltage Regulators Included
    • Supply Voltage: 120 VAC, 240 VAC 50/60 Hz or Specified DC Supply

    Bench Reference
    Radar Test Set
    Communication Systems

    		 Frequency Specific (Consult Factory) 19" Rack Mount Chassis 1U, 2U, 3U & 5U Options
