Model	Description	Application	Phase Noise (100 kHz)	Size

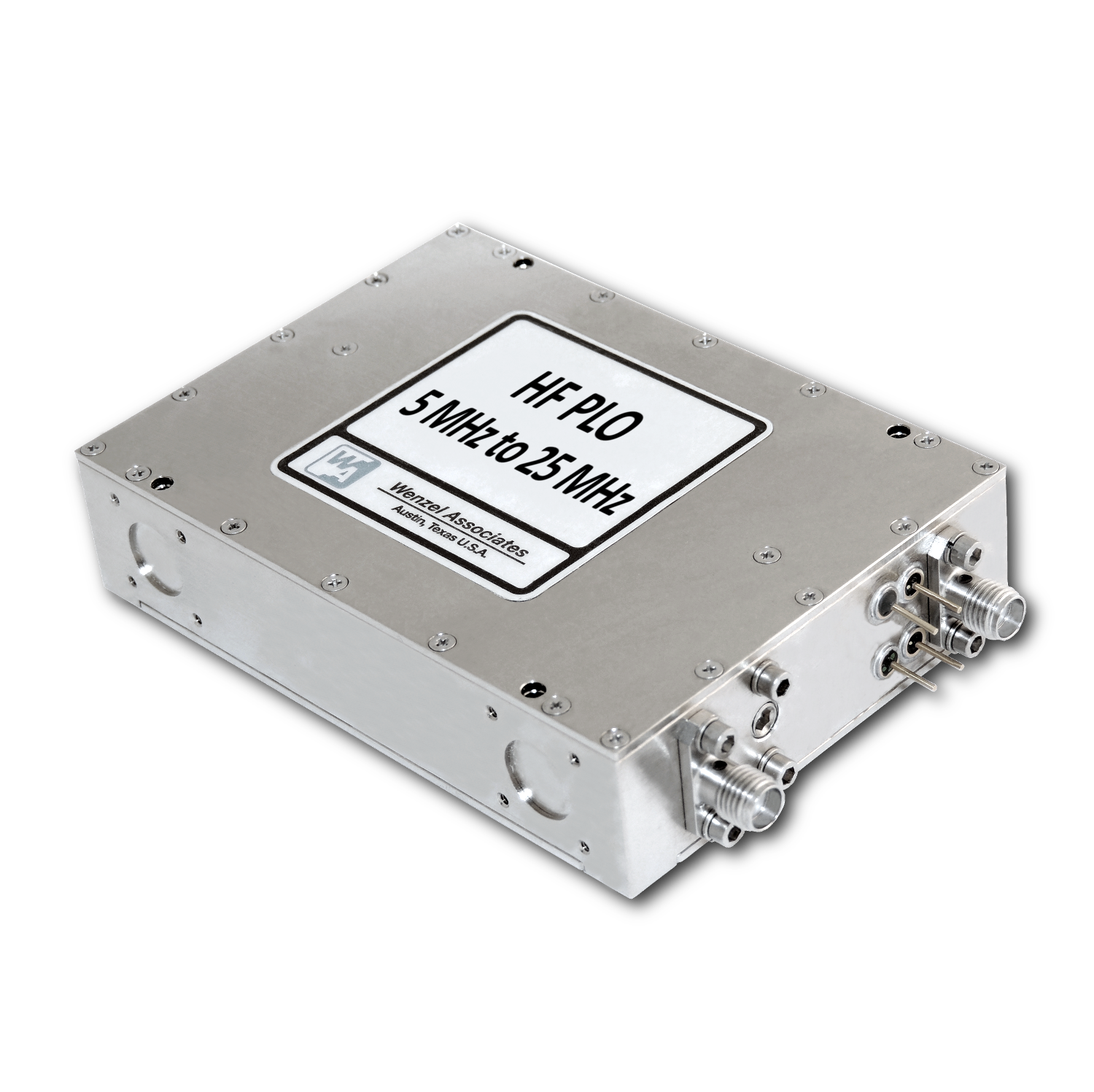

Premium HF PLO	Frequencies 5 MHz to 25 MHz, fixed Ultra Low Phase Noise Ruggedized for Dynamic Environments Nickel-Plated Machined Aluminum Case SMA(f) and Solder Pins on Side Output: Sine, +13 dBm, Standard Automatic Input Detection Low Loop Bandwidth: ≤ 1 Hz, typical Dual Output Option Configured for use with Vibration Isolators	Up/Down Converters GPS Receivers System Synchronization Test Equipment Radar Systems	-174 dBc/Hz	3.5 x 2.5 x 0.8"

Model	Description	Application	Phase Noise (100 kHz)	Size

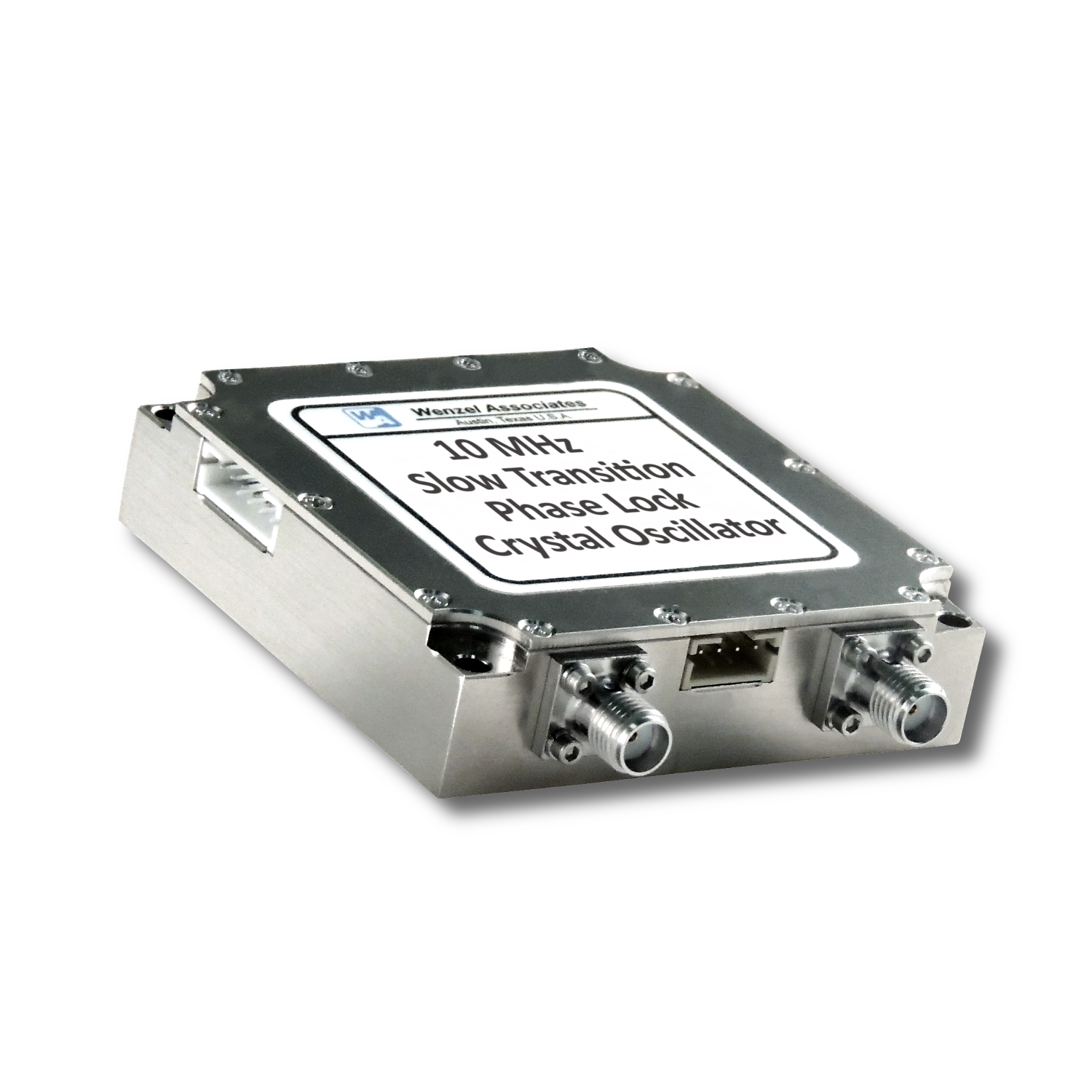

Slow Transition HF PLO	Smooth Frequency Transition on Loss/Reacquisition of Ext Ref (≤60 ppb/second) Frequency Calibration and Aging Correction Function To -145 dBc/Hz @ 10 Hz offset PLL LBW: ≤ 0.1 Hz Low G-Sensitivity to ≤ 3E-10/g Package: 2.5 x 2.5 x 0.6 in Vibration Isolated Option	Up/Down Converters GPS Receivers System Synchronization Test Equipment Radar Systems	-170 dBc/Hz	2.5 x 2.5 x 0.6"

Product :
5 MHz to 25 MHz
