Product Type:

Phase Lock (PLO)

Description:

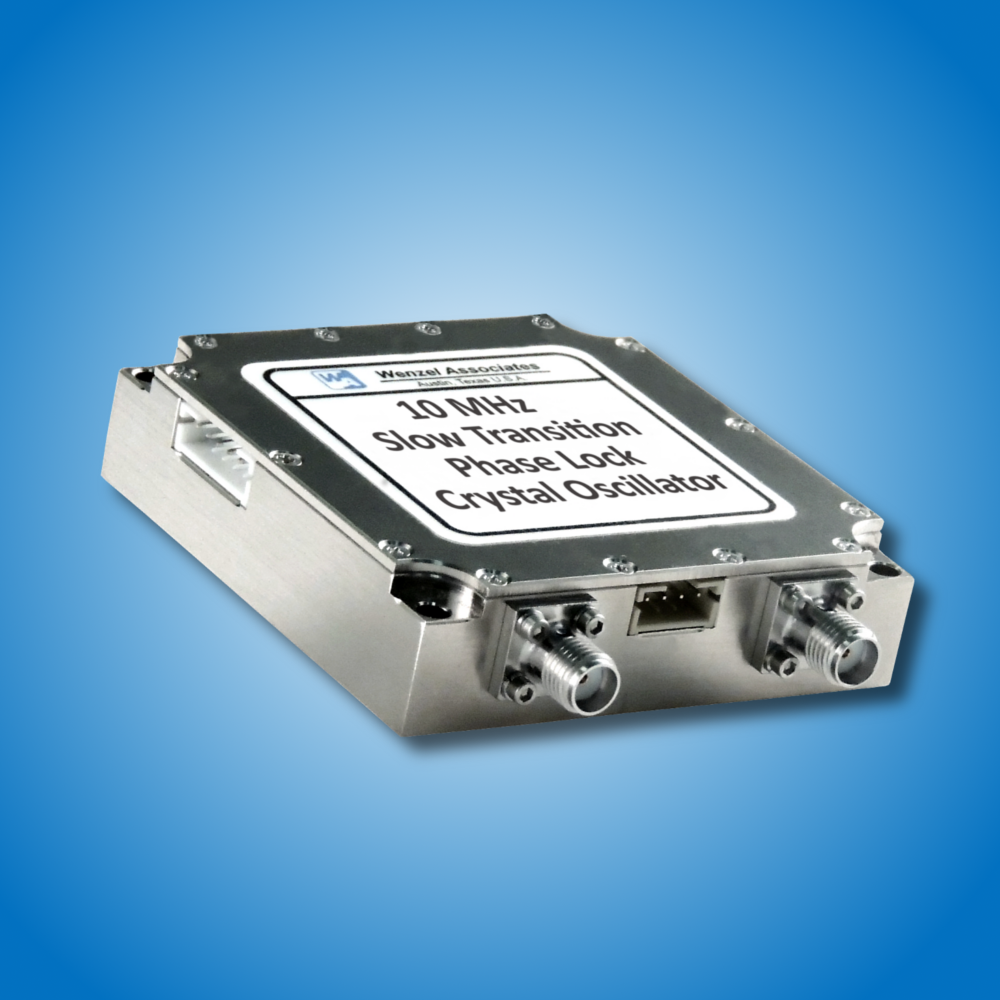

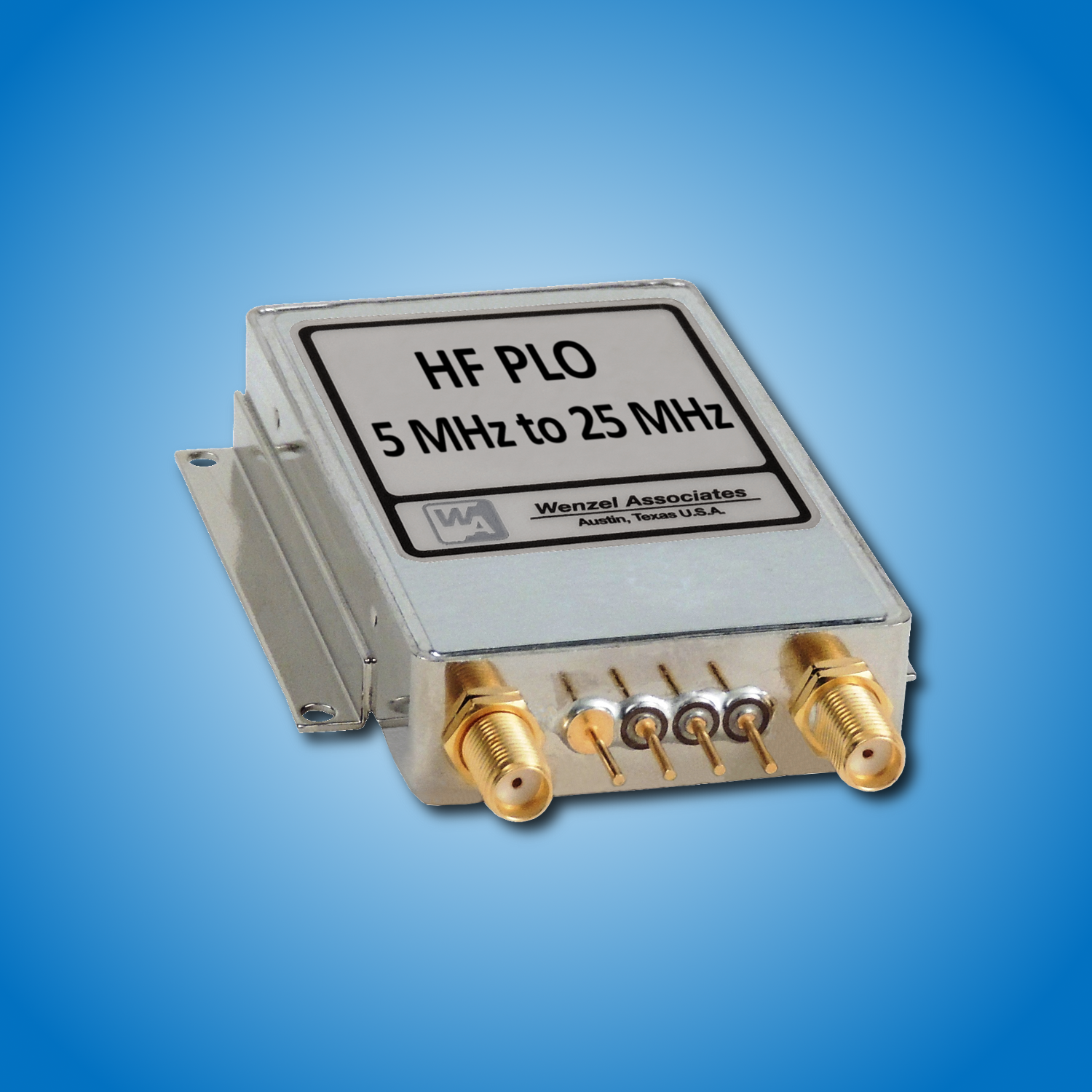

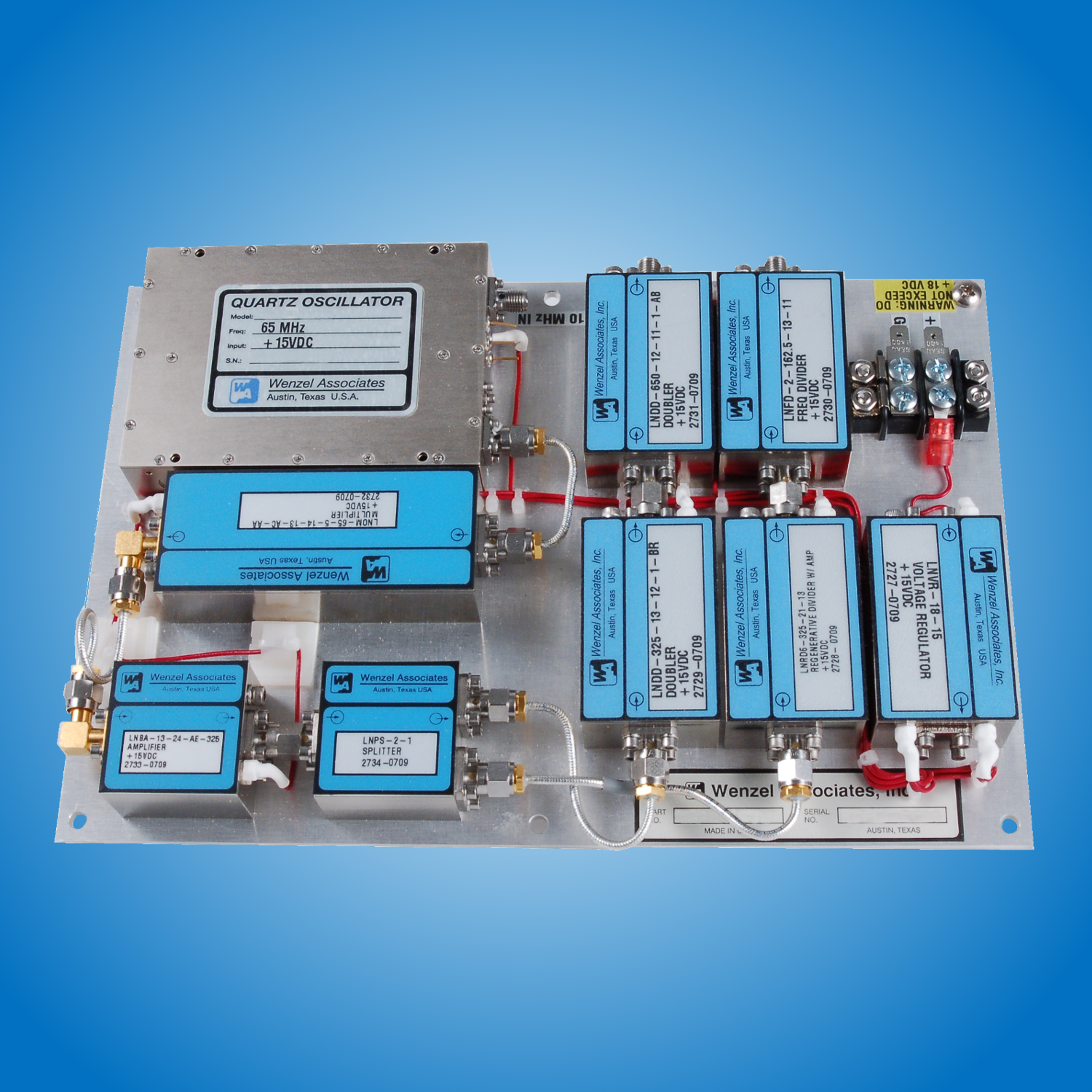

Phase Lock Crystal Oscillators are widely employed in commercial and military applications requiring a precise signal synchronized with a more stable external reference and/or improved phase noise performance. Wenzel Associates’ phase lock oscillators consist of an oven compensated low or ultra-low phase noise crystal oscillator, comparator, loop amplifier and dividers/multipliers for scaling the reference and internal oscillator signals for locking at a common frequency. When a reference is present, the comparator will produce an error voltage which is applied to the varactor of the internal oscillator, and will electrically tune the oscillator until the frequency is matched and phase locked with the reference. Wenzel offers PLO solutions with output frequencies from 5 MHz to 12 GHz. Please contact our technical staff to discuss your specific application needs.

Model	Description	Application	Phase Noise (100 kHz)	Size

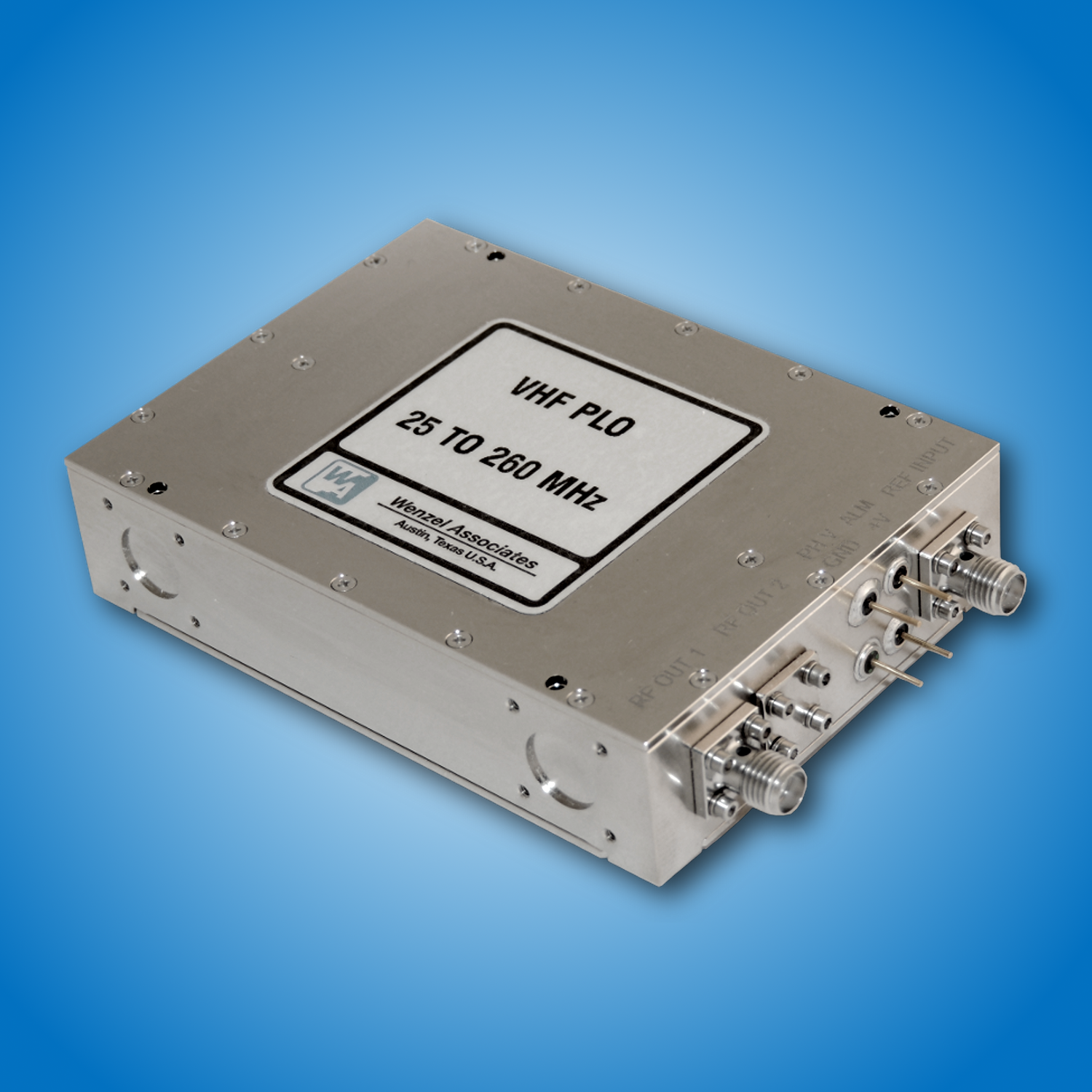

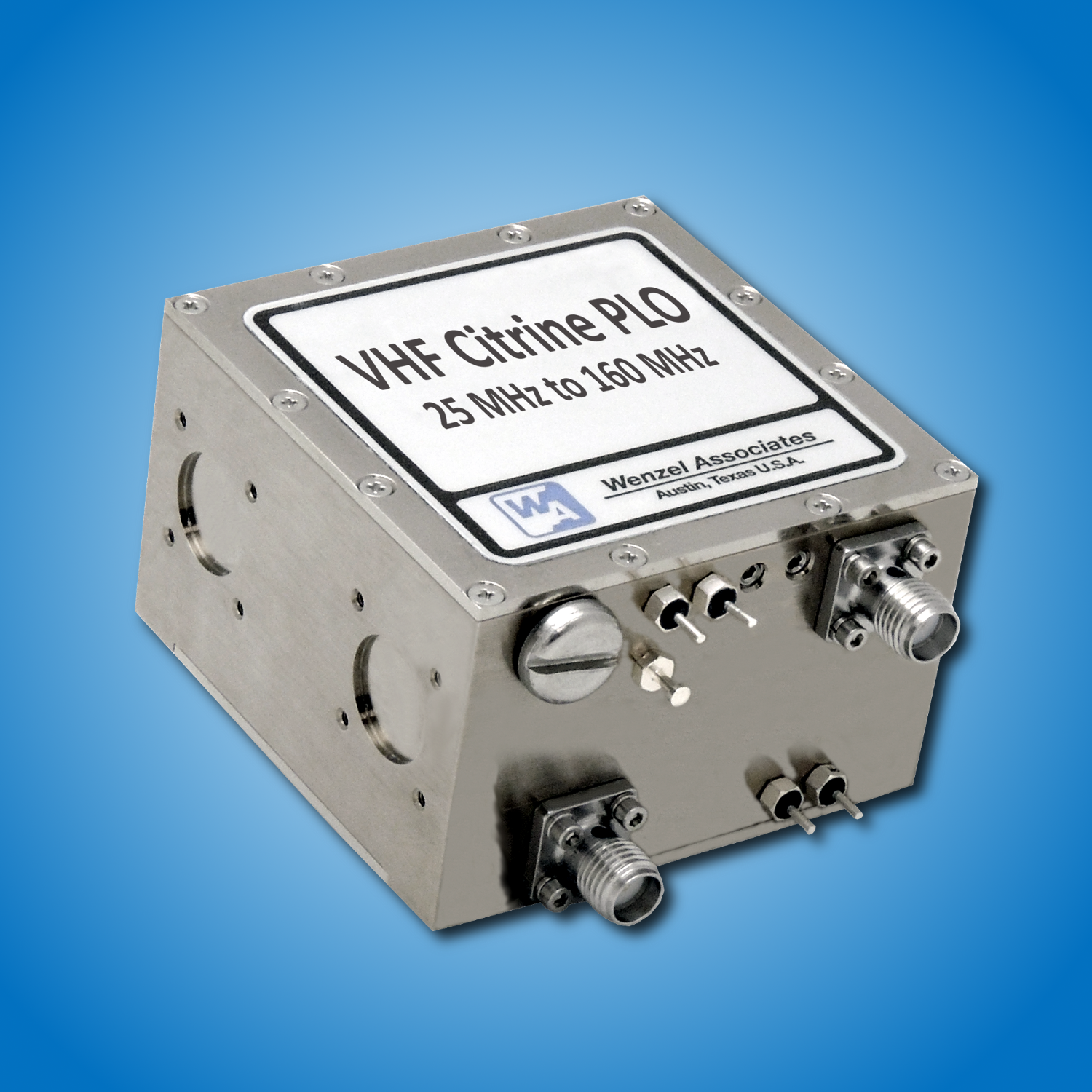

VHF PLO	Frequencies from 25 MHz to 260 MHz, fixed Standard and Premium Phase Noise Ruggedized for Dynamic Environments Nickel-Plated Machined Aluminum Case SMA(f) and Solder Pins on Side Output: Sine, +13 dBm, Standard Automatic Input Detection LBW: 1 Hz to 100 Hz (Optimized for Best Performance) Low G-Sensitivity to 2E-10/g per axis Dual Output Option Configured for use with Vibration Isolators	Airborne Radar Systems Tacticle Radio Vehicular Communication System Synchronization Test Equipment	25 MHz to 130 MHz: -170 dBc/Hz (Standard) -176 dBc/Hz (Premium) 130 MHz to 260 MHz: -163 dBc/Hz (Standard) -169 dBc/Hz (Premium)	3.5 x 2.5 x 0.8"

Model	Description	Application	Phase Noise (100 kHz)	Size

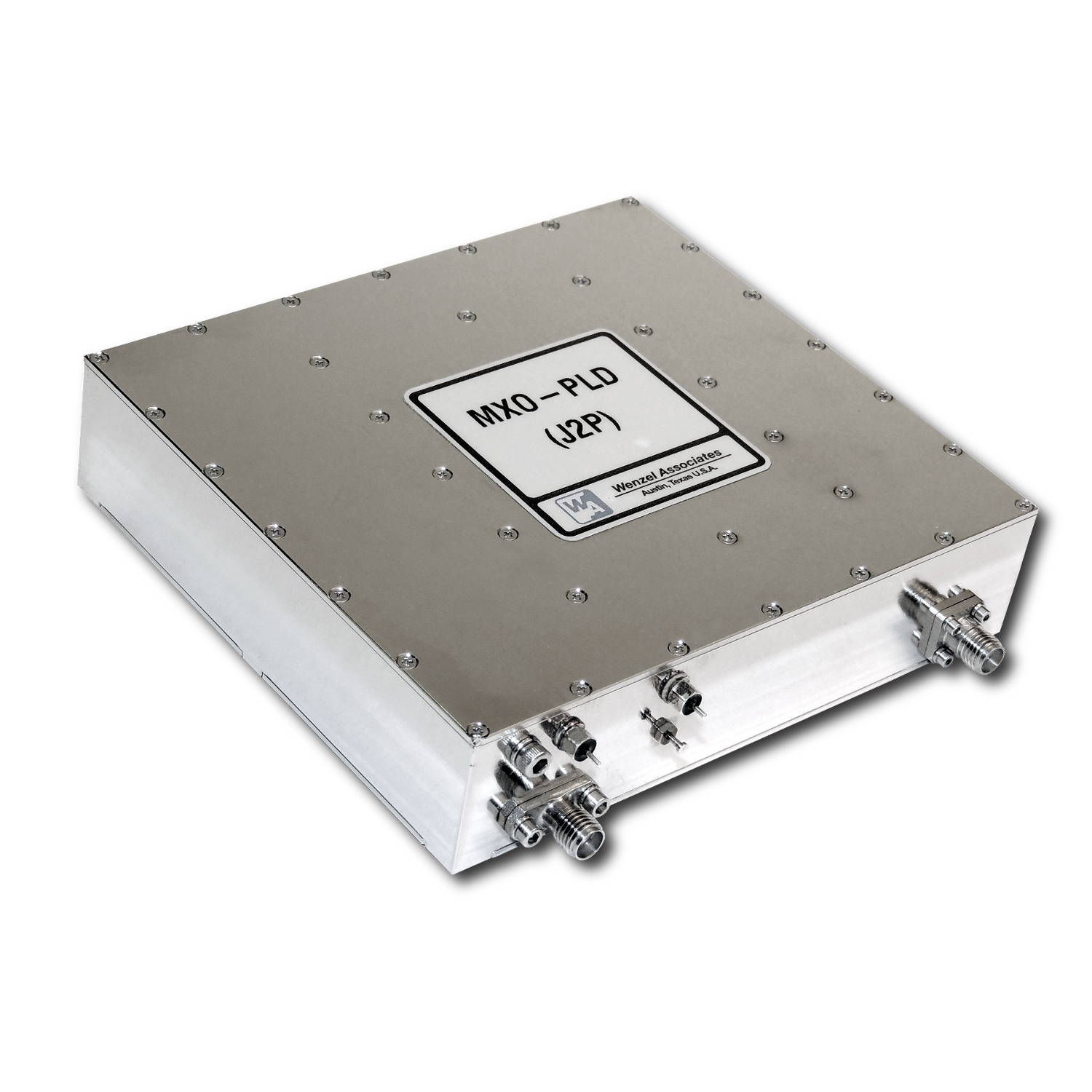

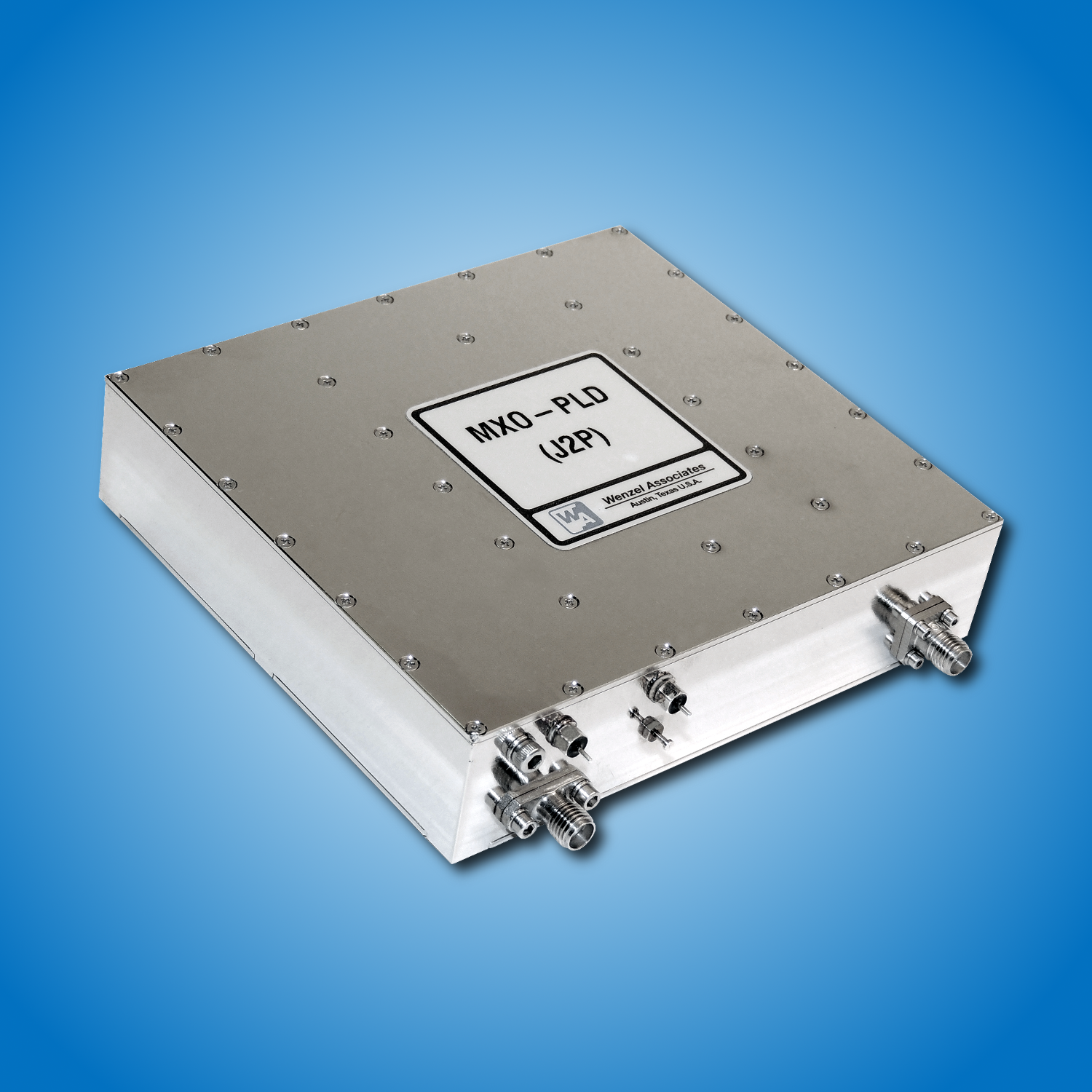

MXO-PLD	Frequencies from 200 MHz to 12 GHz, fixed Ultra Low Phase Noise Includes Integrated Multipliers, Filters and Amps Ruggedized for Dynamic Environments Nickel-Plated Machined Aluminum Case SMA(f) and Solder Pins on Side Output: Sine, +13 dBm, Standard; To +21 dBm, Optional Multiple Frequency Outputs Optional Automatic Input Detection Ext Ref and Int Osc Divided Down to a Common Frequency LBW: ≤ 10 Hz, typical Low G-Sensitivity	Radar Systems Instruments Test Equipment Reference Oscillator	200 MHz (100 MHz x2) 500 MHz (100 MHz x5) 1 GHz (100 MHz x 10) 1.28 GHz (80 MHz x 16) 10 GHz (100 MHz x 100) -168 dBc/Hz (200 MHz) -160 dBc/Hz (500 MHz) -154 dBc/Hz (1 GHz) -149 dBc/Hz (1.28 GHz) -132 dBc/Hz (10 GHz)	3.45 x 4 x 1" 4.40 x 4 x 1" 5.36 x 4 x 1"

Model	Description	Application	Phase Noise (100 kHz)	Size

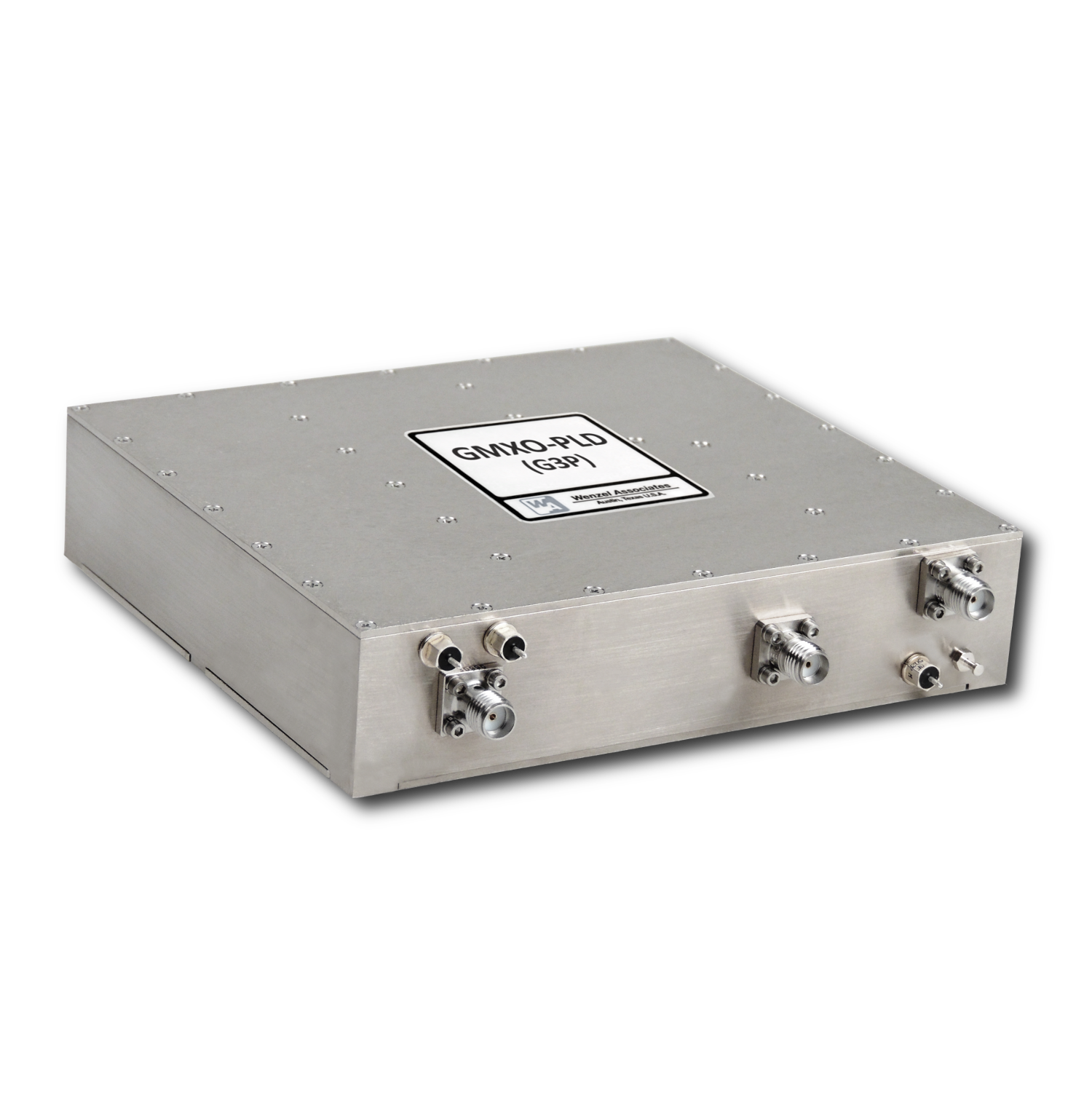

GMXO-PLD	Frequencies from 200 MHz to 12 GHz, fixed Golden Phase Noise Includes Integrated Multipliers, Filters and Amps Ruggedized for Dynamic Environments Nickel-Plated Machined Aluminum Case SMA(f) and Solder Pins on Side Output: Sine, +13 dBm, Standard; To +21 dBm, Optional Multiple Frequency Outputs Optional Automatic Input Detection Ext Ref and Int Osc Divided Down to a Common Frequency LBW: ≤ 10 Hz, typical Low G-Sensitivity	Radar Systems Instruments Test Equipment Reference Oscillator	200 MHz (100 MHz x2) 500 MHz (100 MHz x5) 1 GHz (100 MHz x 10) 1.28 GHz (80 MHz x 16) 10 GHz (100 MHz x 100) -175 dBc/Hz (200 MHz) -170 dBc/Hz (500 MHz) -163 dBc/Hz (1 GHz) -156 dBc/Hz (1.28 GHz) -140 dBc/Hz (10 GHz)	4.45 x 4 x 1" 5.40 x 4 x 1" 6.36 x 4 x 1"

Model	Description	Application	Phase Noise (100 kHz)	Size

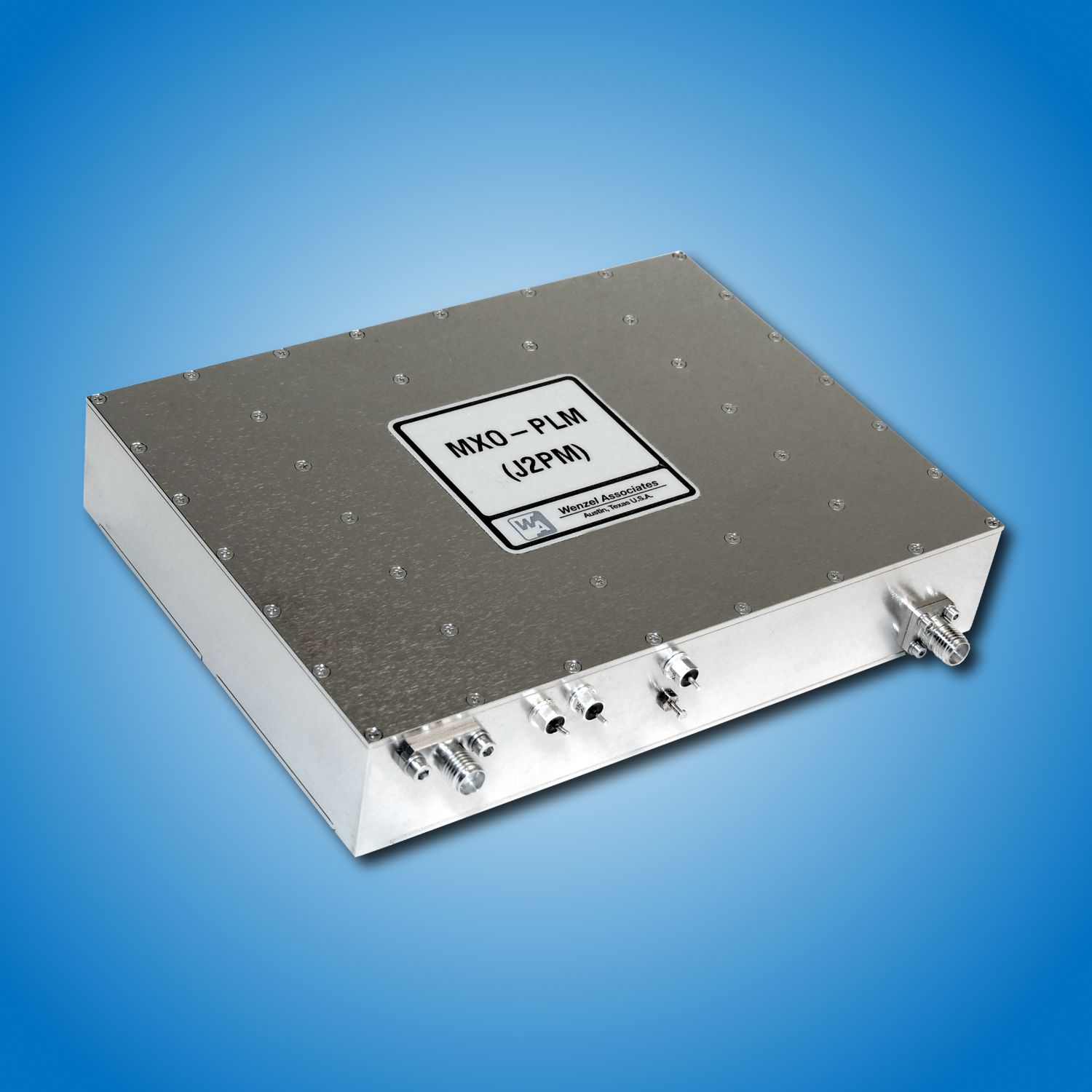

MXO-PLM	Frequencies from 200 MHz to 12 GHz, fixed Ultra Low Phase Noise Includes Integrated Multipliers, Filters and Amps Ruggedized for Dynamic Environments Nickel-Plated Machined Aluminum Case SMA(f) and Solder Pins on Side Output: Sine, +13 dBm, Standard; To +21 dBm, Optional Multiple Frequency Outputs Optional Automatic Input Detection Best Option for Consistent Phase Coherence with Ext Ref Ext Ref Multiplied Up to Lock at Int Osc Frequency LBW: 200 Hz to 300 Hz, typ (Optimized for Best Performance) Low G-Sensitivity	Radar Systems Instruments Test Equipment Reference Oscillator Phase Coherent Systems	200 MHz (100 MHz x2) 500 MHz (100 MHz x5) 1 GHz (100 MHz x 10) 1.28 GHz (80 MHz x 16) 10 GHz (100 MHz x 100) -168 dBc/Hz (200 MHz) -160 dBc/Hz (500 MHz) -154 dBc/Hz (1 GHz) -149 dBc/Hz (1.28 GHz) -132 dBc/Hz (10 GHz)	4.40 x 4 x 1" 5.36 x 4 x 1" 6.31 x 4 x 1"

Model	Description	Application	Phase Noise (100 kHz)	Size

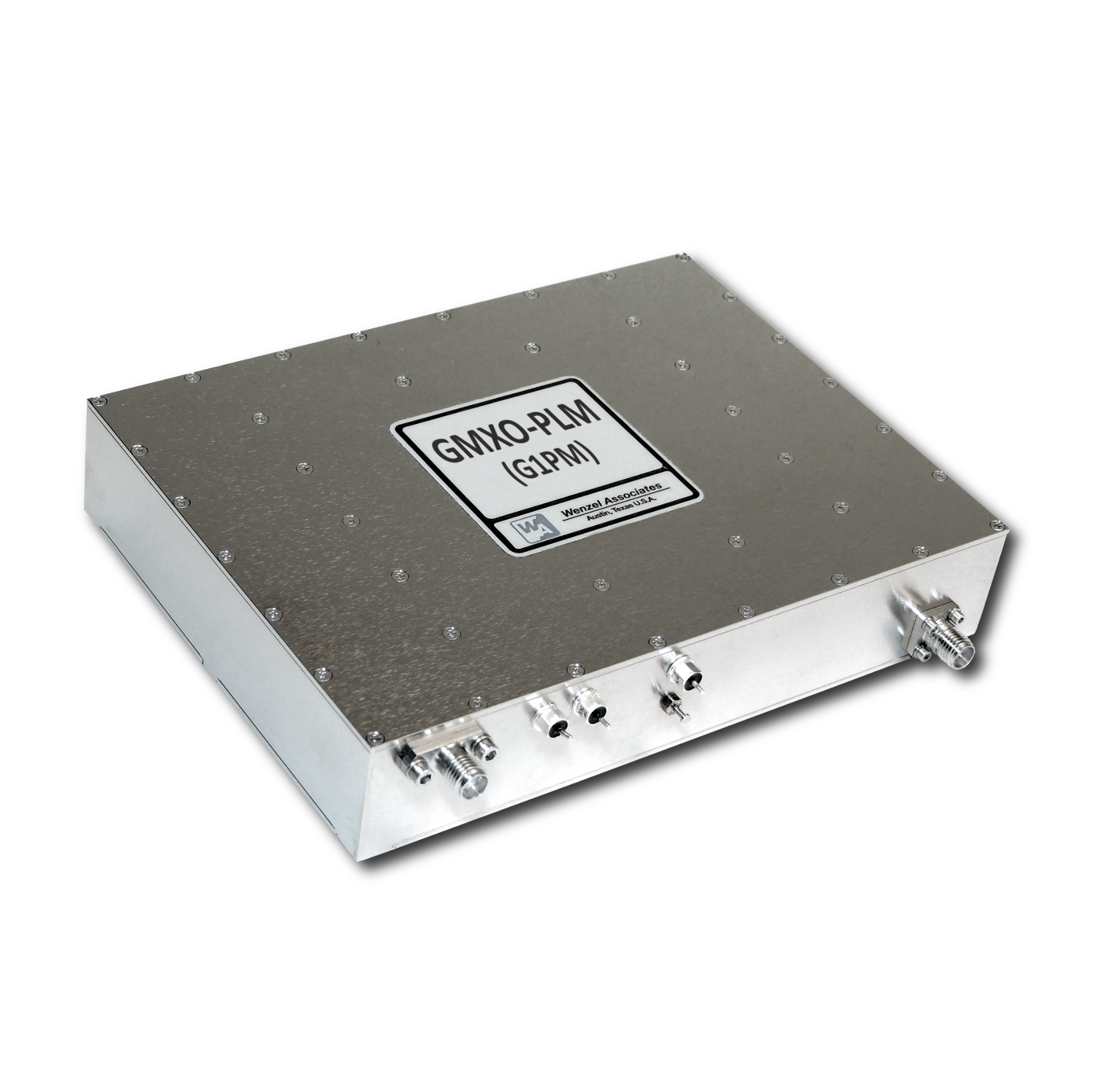

GMXO-PLM	Frequencies from 200 MHz to 12 GHz, fixed Golden Phase Noise Includes Integrated Multipliers, Filters and Amps Ruggedized for Dynamic Environments Nickel-Plated Machined Aluminum Case SMA(f) and Solder Pins on Side Output: Sine, +13 dBm, Standard; To +21 dBm, Optional Multiple Frequency Outputs Optional Automatic Input Detection Best Option for Consistent Phase Coherence with Ext Ref Ext Ref Multiplied Up to Lock at Int Osc Frequency LBW: 200 Hz to 300 Hz, typ (Optimized for Best Performance) Low G-Sensitivity	Radar Systems Instruments Test Equipment Reference Oscillator Phase Coherent Systems	200 MHz (100 MHz x2) 500 MHz (100 MHz x5) 1 GHz (100 MHz x 10) 1.28 GHz (80 MHz x 16) 10 GHz (100 MHz x 100) -175 dBc/Hz (200 MHz) -170 dBc/Hz (500 MHz) -163 dBc/Hz (1 GHz) -156 dBc/Hz (1.28 GHz) -140 dBc/Hz (10 GHz)	5.40 x 4 x 1" 6.36 x 4 x 1" 7.31 x 4 x 1"
