Name: Quantic Wenzel
Address: 2215 Kramer Lane, Austin, Texas, 78755
Price range: $

Model	Description	Application	Phase Noise (100 kHz)	Size

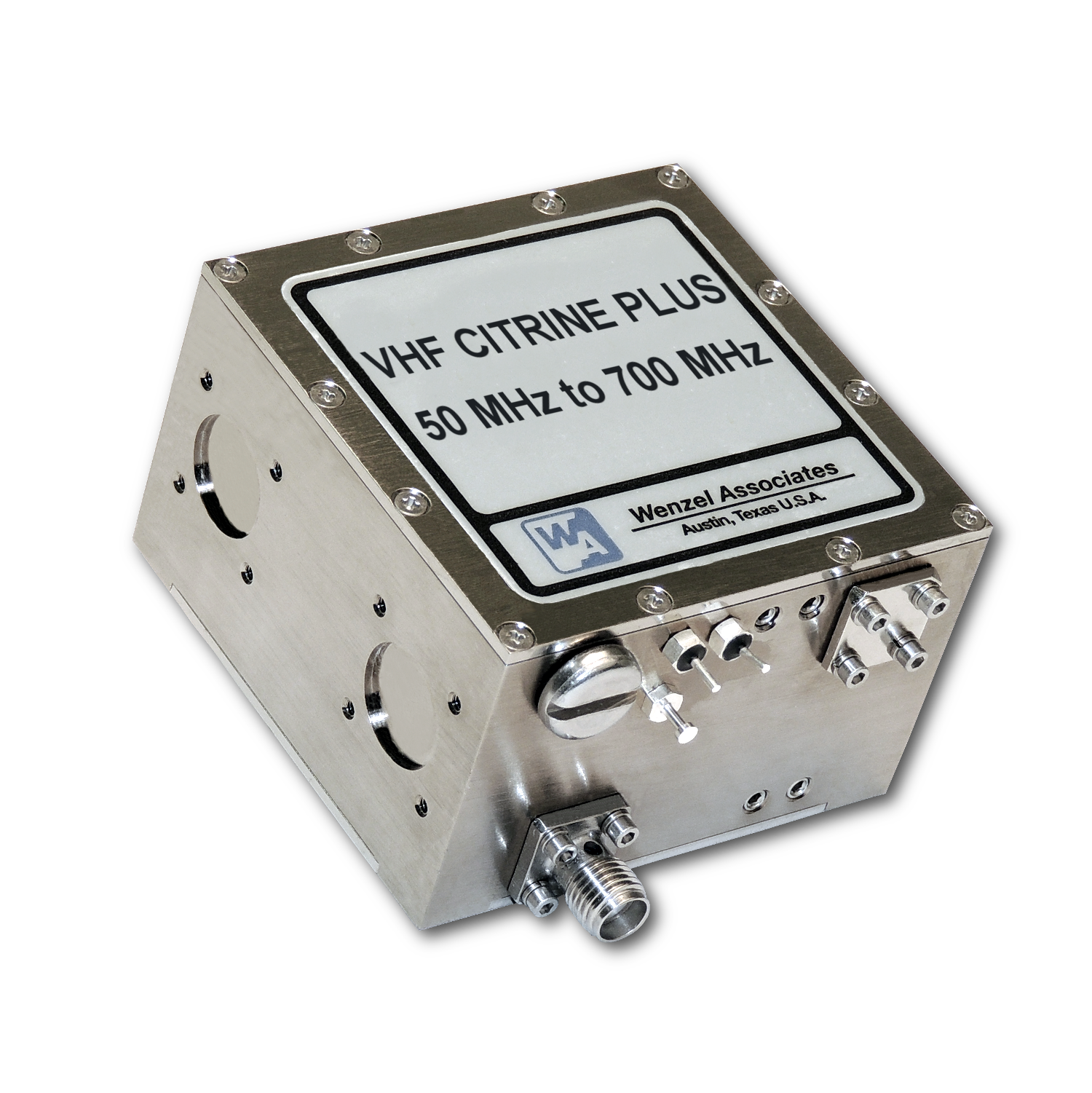

VHF Citrine Plus	Frequencies from 50 MHz to 700 MHz, fixed Standard and Premium Phase Noise Options VHF OCXO (25 MHz to 160 MHz) Plus an Additional Circuit Option to add Multiplier, Divider, Filter, PLL or Amplifier Ruggedized for Dynamic Environments Nickel-Plated Machined Aluminum Case SMA(f) and Solder Pins on Side Optional Voltage Reference and Oven Monitor Pins Output: Sine, +13 dBm, Standard; To +21 dBm (w/Integrated Amplifier) Low G-Sensitivity 2E-10/g per axis Vibration Isolated Version Available	Airborne Radar Systems Tacticle Radio Vehicular Communication	200 MHz (100 MHz x 2) 500 MHz (100 MHz x 5) 650 MHz (130 MHz x 5) -163 dBc/Hz (200 MHz, Standard) -154 dBc/Hz (500 MHz, Standard) -154 dBc/Hz (650 MHz, Standard) -169 dBc/Hz (200 MHz, Premium) -160 dBc/Hz (500 MHz, Premium) -160 dBc/Hz (650 MHz, Premium)	2 x 2 x 1.3"

Model	Description	Application	Phase Noise (100 kHz)	Size

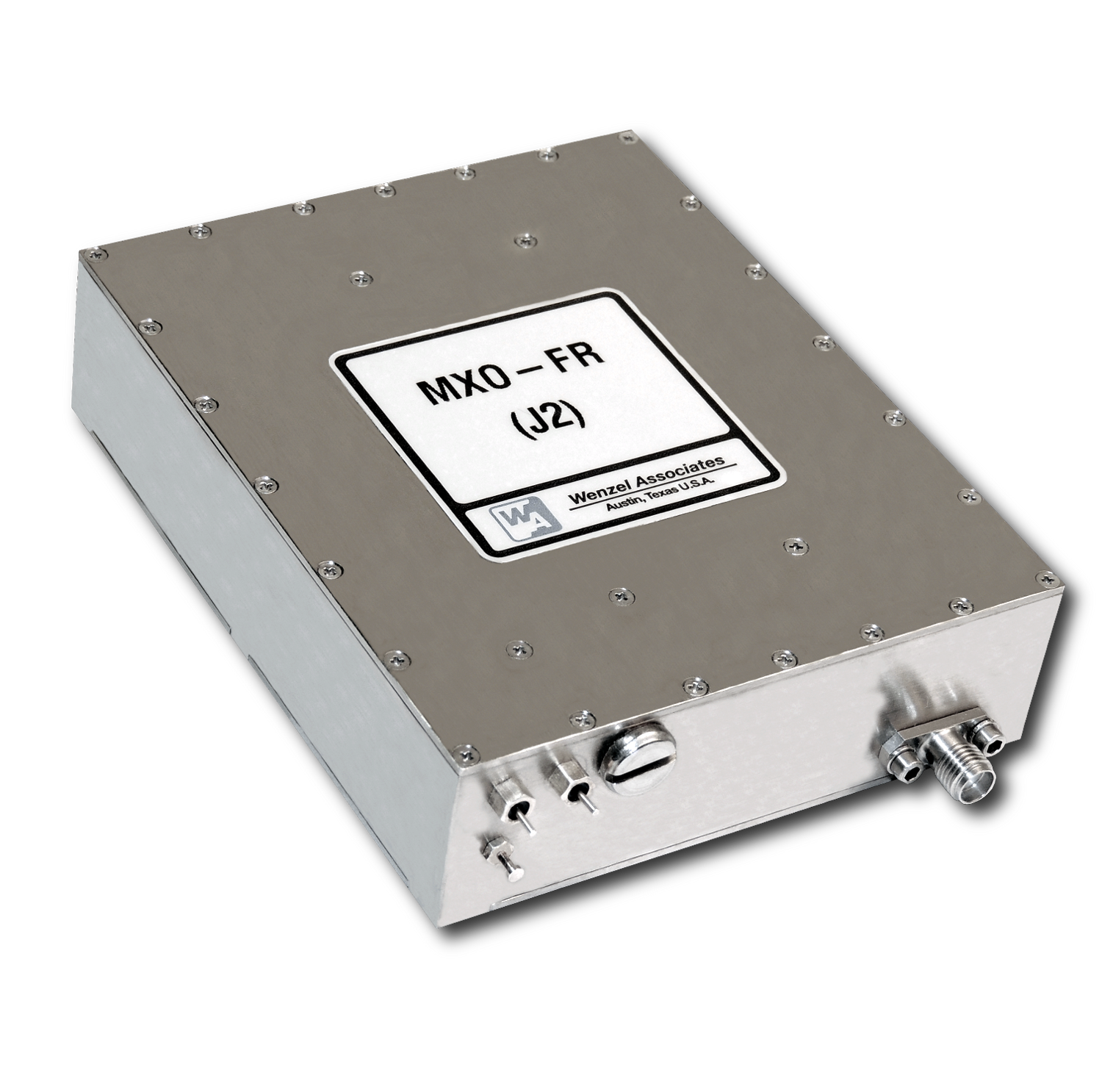

MXO-FR	Frequencies from 200 MHz to 12 GHz, fixed Ultra Low Phase Noise Includes Integrated Multipliers, Filters and Amps Ruggedized for Dynamic Environments Nickel-Plated Machined Aluminum Case SMA(f) and Solder Pins on Side Output: Sine, +13 dBm, Standard; To +21 dBm, Optional Multiple Frequency Outputs Optional	Radar Systems Instruments Test Equipment Reference Oscillator	500 MHz (100 MHz x5) 1 GHz (100 MHz x 10) 1.28 GHz (80 MHz x 16) 10 GHz (100 MHz x 100) -160 dBc/Hz (500 MHz) -154 dBc/Hz (1 GHz) -149 dBc/Hz (1.28 GHz) -132 dBc/Hz (10 GHz)	2.25 x 4 x 1" 3.21 x 4 x 1" 4.16 x 4 x 1"

Model	Description	Application	Phase Noise (100 kHz)	Size

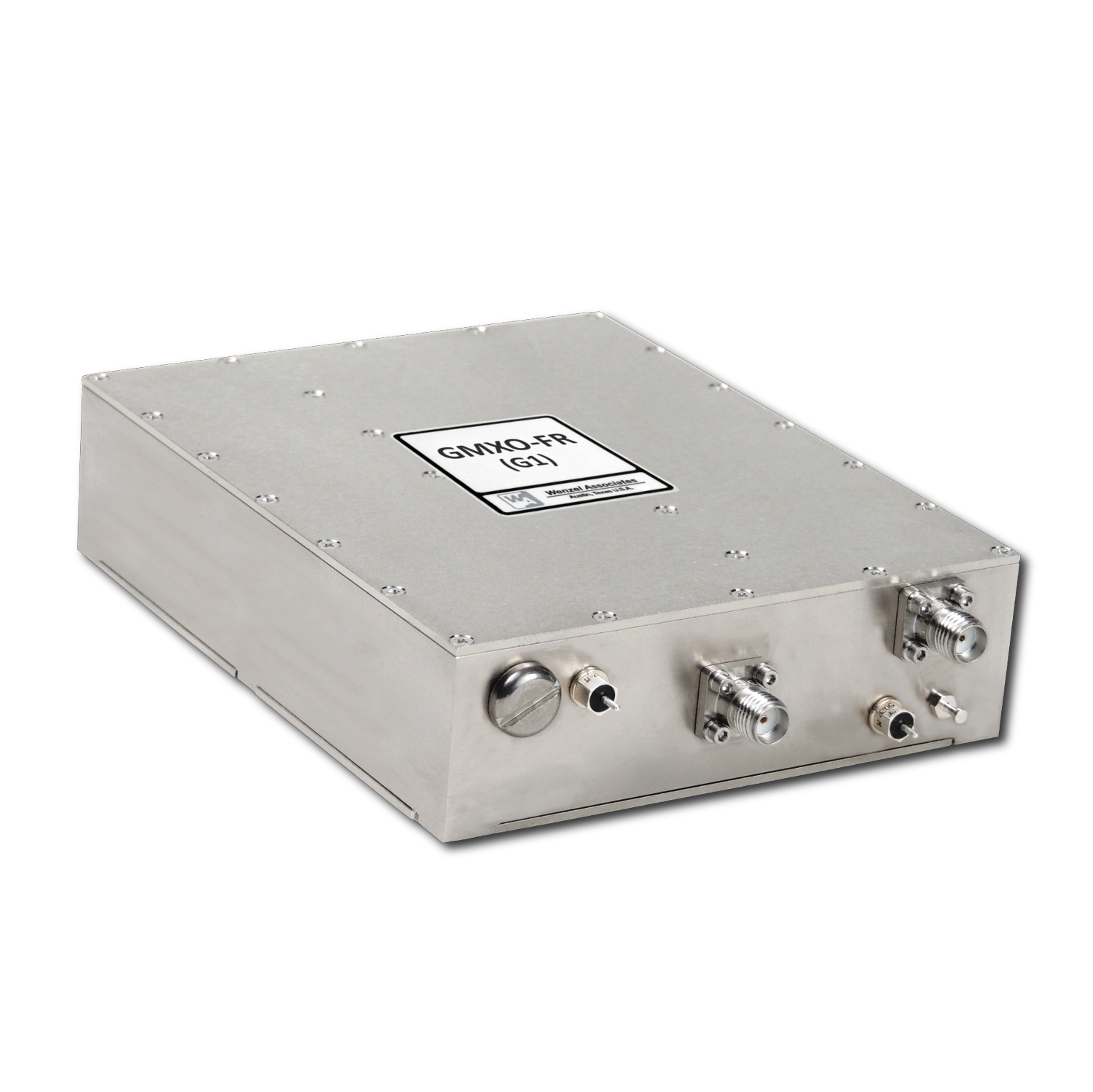

GMXO-FR	Frequencies from 200 MHz to 12 GHz, fixed Golden Phase Noise Includes Integrated Multipliers, Filters and Amps Ruggedized for Dynamic Environments Nickel-Plated Machined Aluminum Case SMA(f) and Solder Pins on Side Output: Sine, +13 dBm, Standard; To +21 dBm, Optional Multiple Frequency Outputs Optional	Radar Systems Instruments Test Equipment Reference Oscillator	500 MHz (100 MHz x5) 1 GHz (100 MHz x 10) 1.28 GHz (80 MHz x 16) 10 GHz (100 MHz x 100) -170 dBc/Hz (500 MHz) -164 dBc/Hz (1 GHz) -159 dBc/Hz (1.28 GHz) -142 dBc/Hz (10 GHz)	3.25 x 4 x 1" 4.21 x 4 x 1" 5.16 x 4 x 1"

Model	Description	Application	Phase Noise (100 kHz)	Size

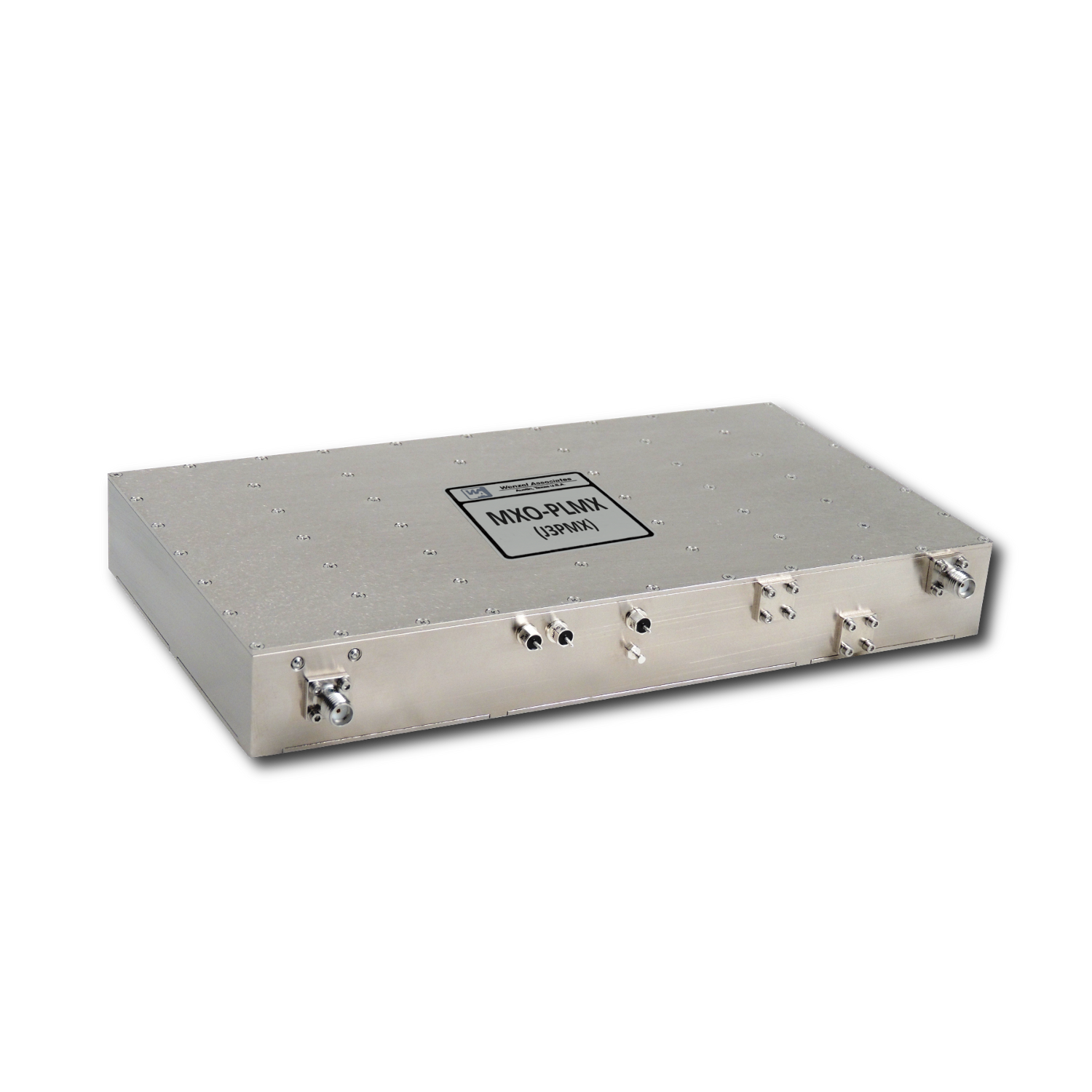

MXO-PLMX	Frequencies from 200 MHz to 12 GHz, fixed Ultra Low Phase Noise Includes Integrated Multipliers, Filters and Amps Ruggedized for Dynamic Environments Nickel-Plated Machined Aluminum Case SMA(f) and Solder Pins on Side Output: Sine, +13 dBm, Standard; To +21 dBm, Optional Multiple Frequency Outputs Optional Includes Internal 10 MHz ULN OCXO Reference (Output Provided) Improved Close-In Phase Noise Excellent Aging and Temperature Stability	Radar Systems Instruments Test Equipment Reference Oscillator	500 MHz (100 MHz x5) 1 GHz (100 MHz x 10) 1.28 GHz (80 MHz x 16) 10 GHz (100 MHz x 100) -160 dBc/Hz (500 MHz) -154 dBc/Hz (1 GHz) -149 dBc/Hz (1.28 GHz) -132 dBc/Hz (10 GHz) -175 dBc/Hz (10 MHz Ref Output)* *Included With All Models	5.56 x 4 x 1" 6.51 x 4 x 1" 7.46 x 4 x 1"

Product :
160 MHz to 700 MHz
