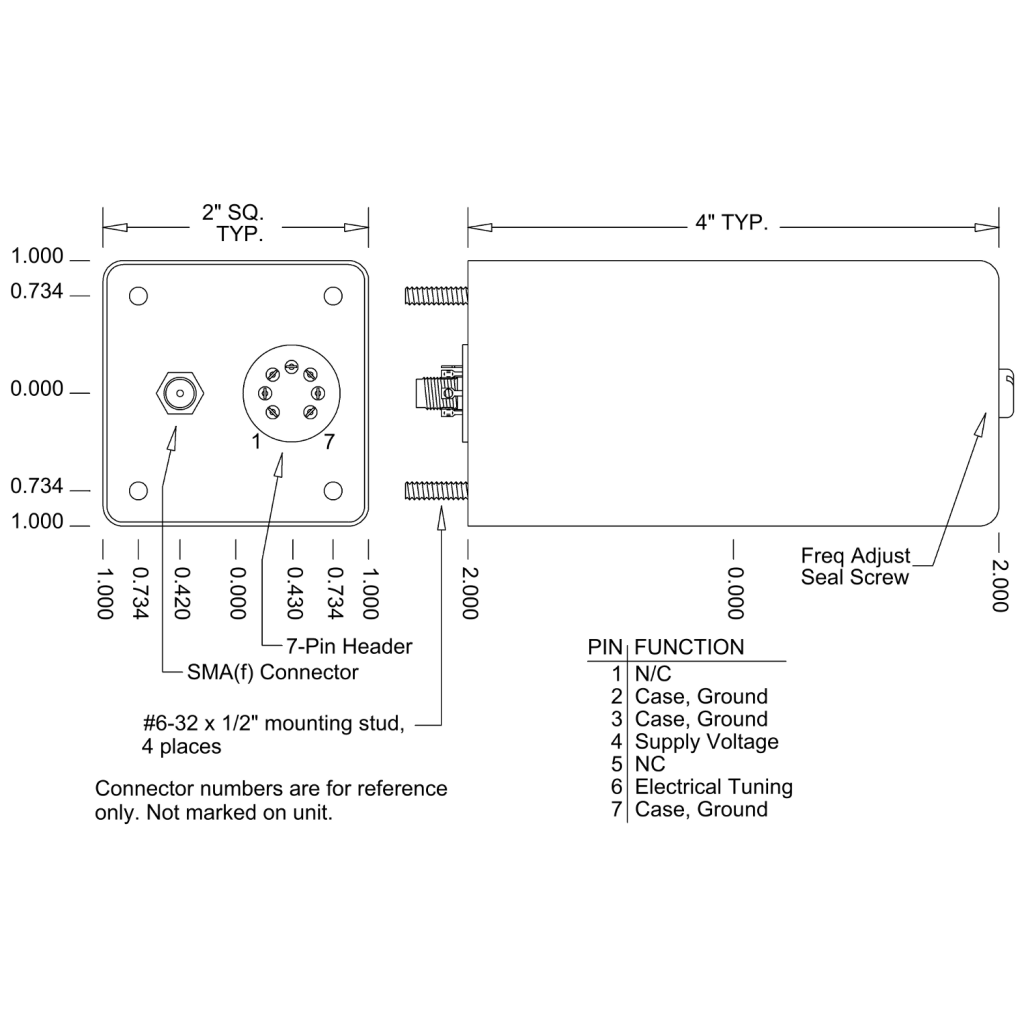

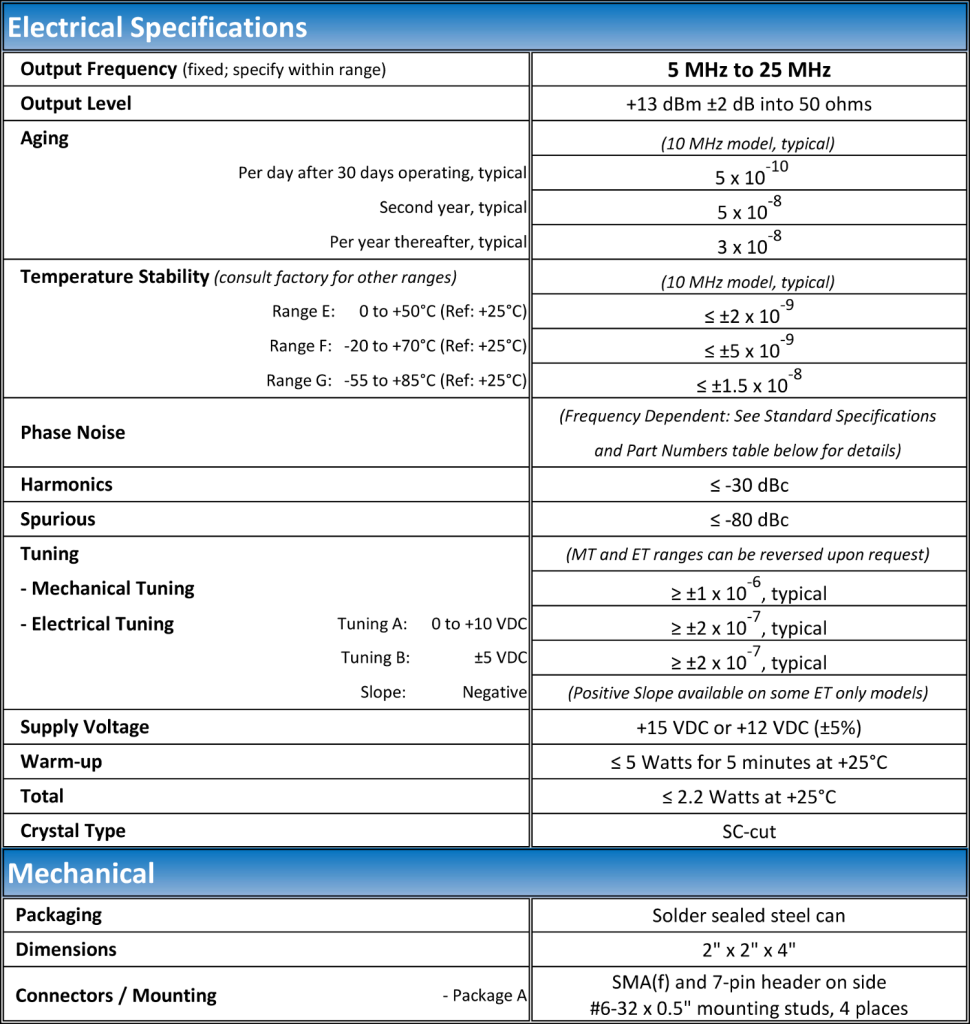

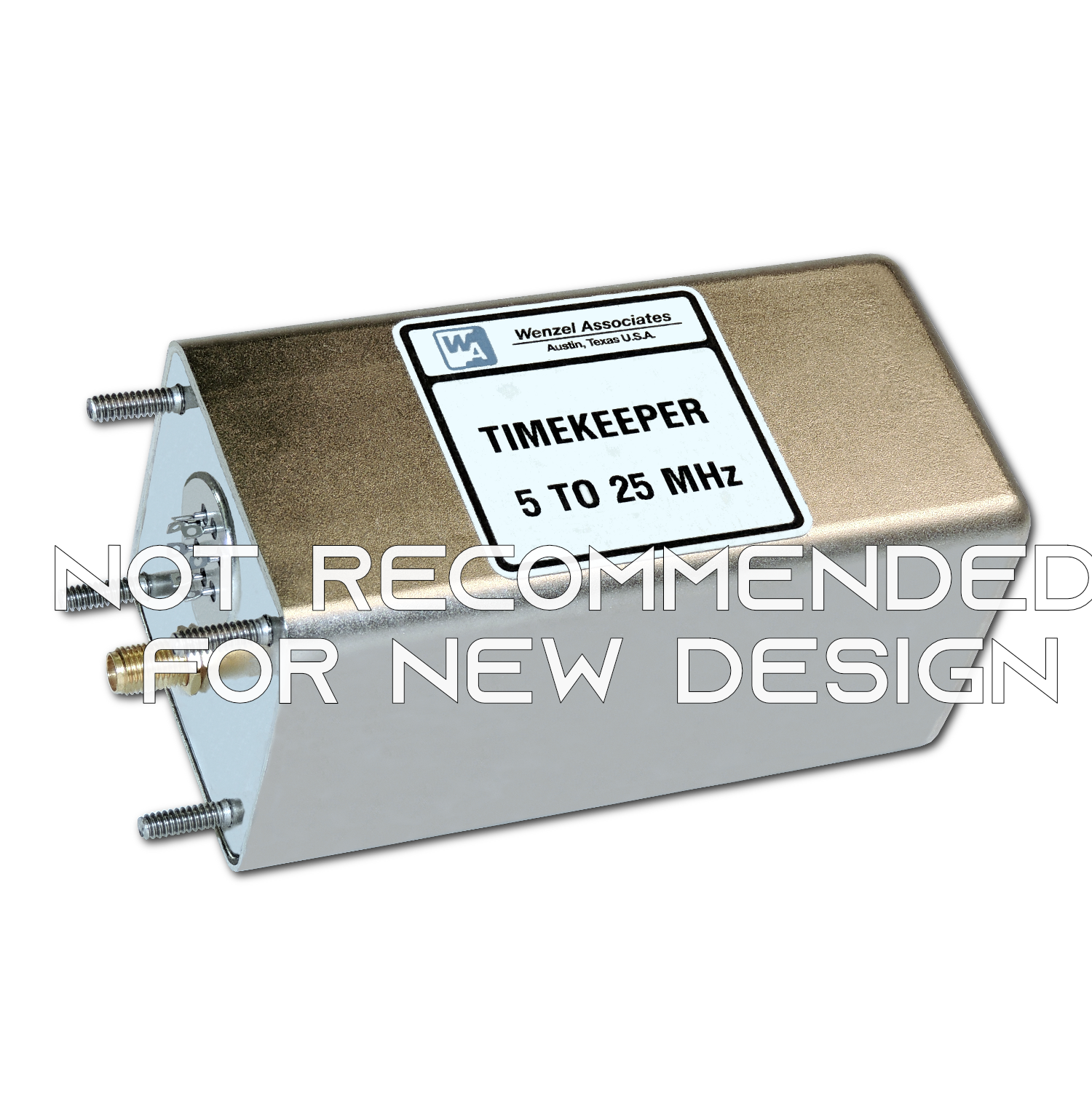

*NOT RECOMMENDED FOR NEW DESIGN* The Timekeeper oscillator is an OCXO with a fixed output frequency between 5 MHz and 25 MHz, and offers excellent overall performance at a modest cost. The oscillator provides aging rates as low as 3E-10 per day and phase noise floor performance to -165 dBc/Hz. The Timekeeper is housed in a solder sealed steel can which is 2” x 2” x 4”, and includes an SMA(f) connector and 7-pin header on one end. A low noise voltage regulator is included to minimize power supply line related spurious signals. Please contact technical staff to discuss custom requirements.
Frequencies from 5 MHz to 25 MHz, fixed
Low Phase Noise
Solder Sealed Steel Can with Mounting Studs
SMA(f) and Solder Pins
Output: Sine, +13 dBm, Standard
Good Temperature Stability
Low Aging rate
GPS Receivers
Synthesizers
Instruments
