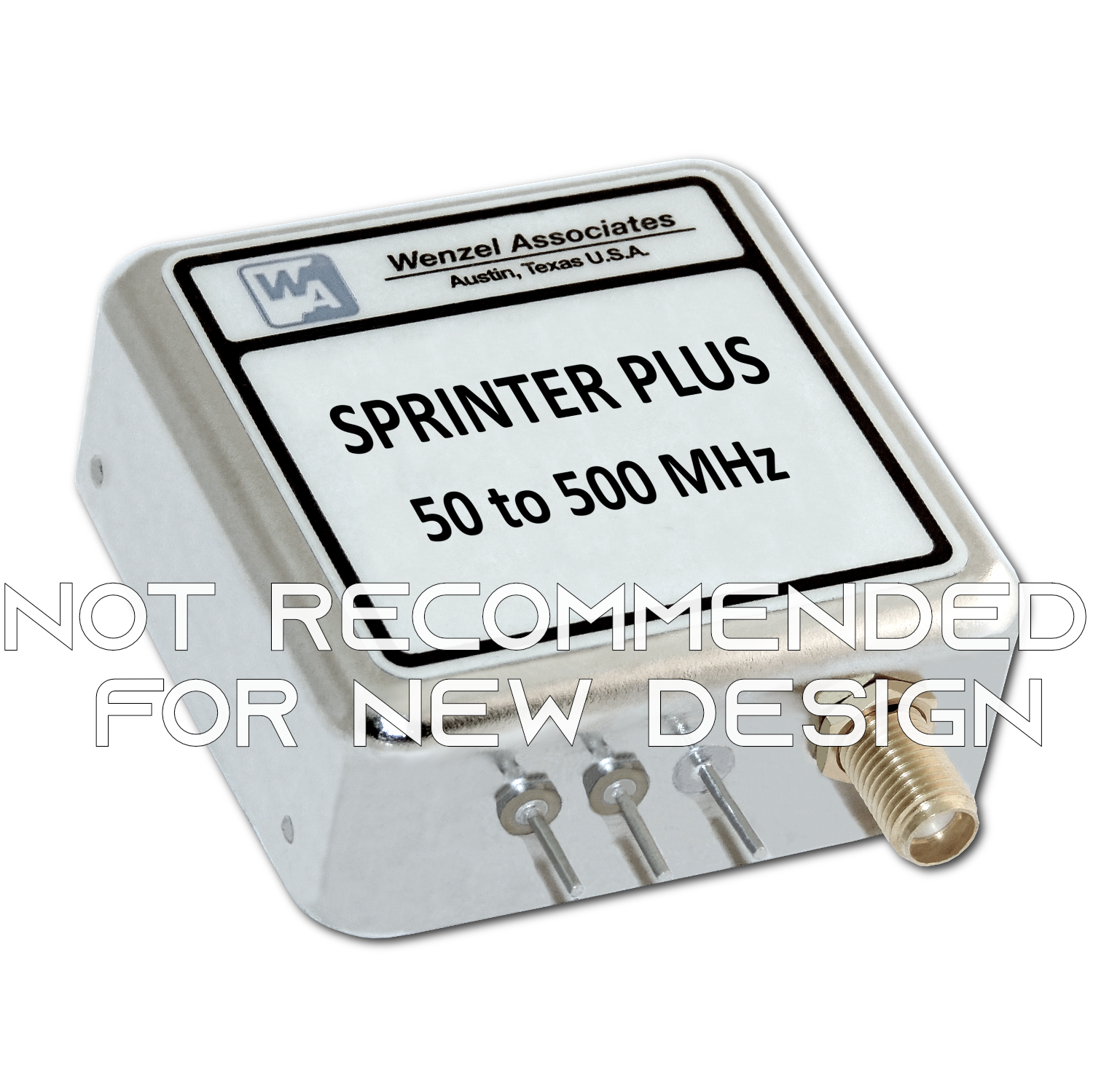

*NOT RECOMMENDED FOR NEW DESIGN* The Sprinter Plus oscillators are general purpose OCXOs with a fixed output frequency between 50 MHz and 500 MHz, which offer excellent overall performance at a modest cost. The Sprinter Plus is comprised of a Sprinter crystal oscillator which is integrated with a multiplier (x2, x3 or x5). These oscillators provide good frequency stability over temperature and low phase noise performance. Connector options include PCB mount with solder pins on the base or SMA(f) connector and solder pins on the side. A low noise voltage regulator is included to minimize power supply line related spurious signals. Please contact technical staff to discuss custom requirements.
General Purpose
Frequencies 50 MHz to 500 MHz, fixed
Low Phase Noise
Includes Integrated Multiplier
Solder Sealed Steel Can
SMA(f) and Solder Pins on Side

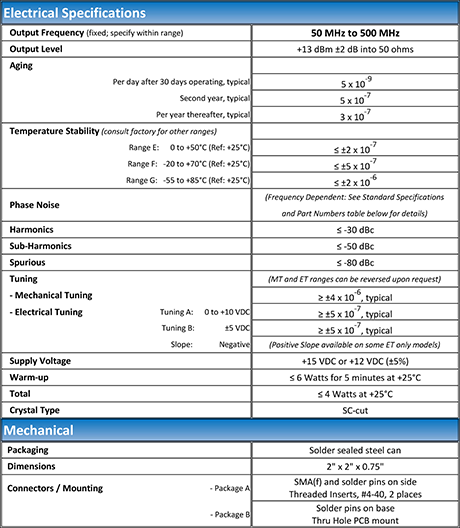

Output: Sine, +13 dBm, Standard
General Purpose
Reference
GPS Receivers
Synthesizers
Instruments
