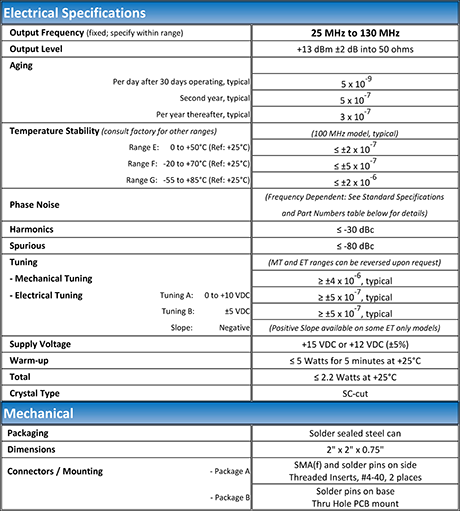

The Sprinter oscillators are general purpose OCXOs with a fixed output frequency between 25 MHz and 130 MHz, which offer excellent overall performance at a modest cost. They provide good frequency stability over temperature and phase noise floor performance to -167 dBc/Hz. Connector options include PCB mount with solder pins on the base or SMA(f) connector and solder pins on the side. A low noise voltage regulator is included to minimize power supply line related spurious signals. Please contact technical staff to discuss custom requirements.
General Purpose
Frequencies from 25 MHz to 130 MHz, fixed
Low Phase Noise
Solder Sealed Steel Can
SMA(f) and Solder Pins or Thru Hole (PCB) Mount
Output: Sine, +13 dBm, Standard; CMOS, Optional
General Purpose Reference
GPS Receivers
Synthesizers
Instruments
