The IFM-1 is a low noise multiplier module, which combines a low noise multiplier, bandpass filter and amplifiers to achieve exceptionally low phase noise, excellent spectral purity and good conversion efficiency. Multiplication factors of 2, 3, 4, 5, 7, 9 and 11 are available with an output frequency to 16 GHz. The IFM-1 provides input referred phase noise floors as low as -176 dBc/Hz. Please consult our technical staff for assistance in configuring a multiplier to suit your needs.

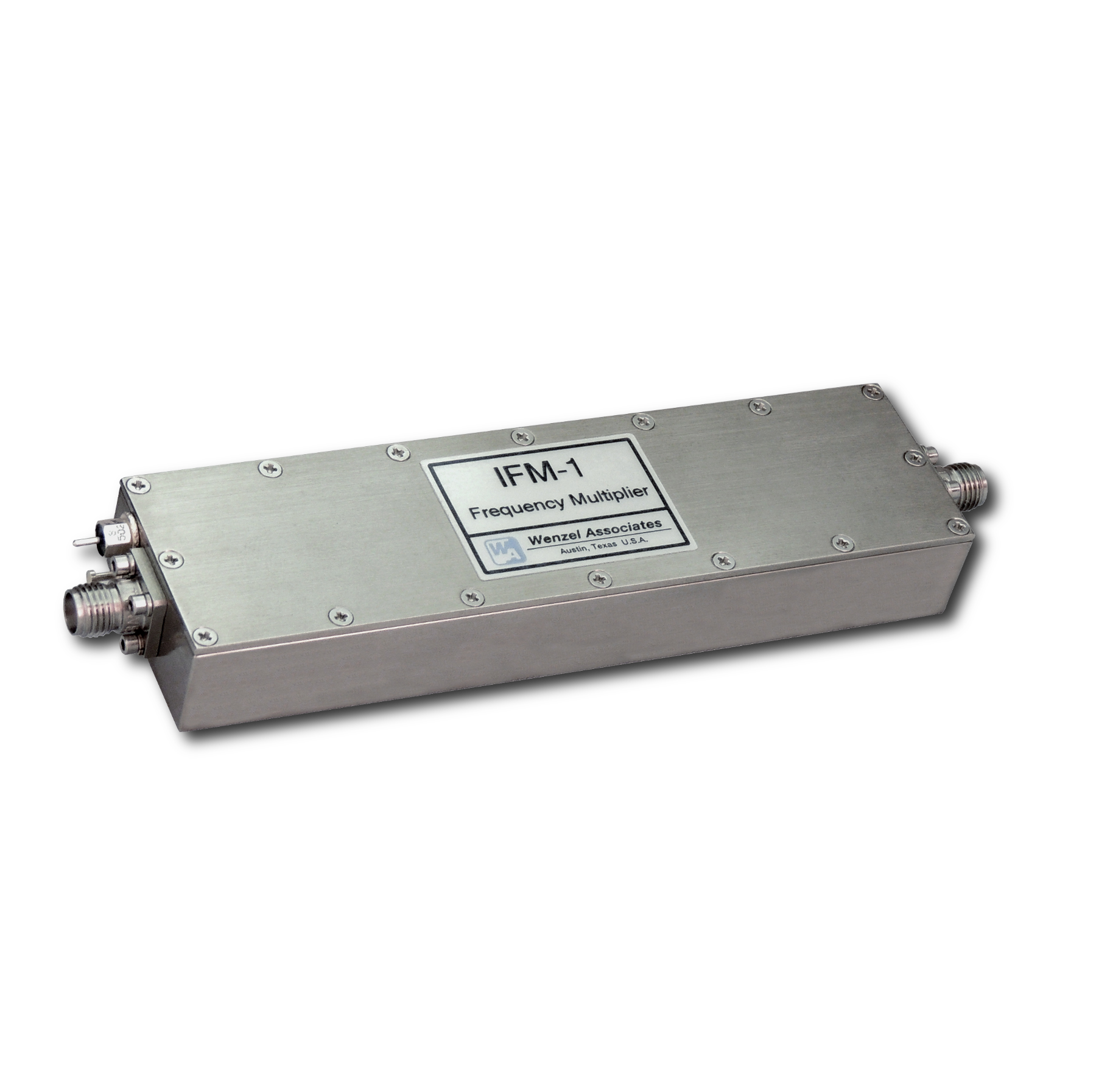

Integrated Frequency Multiplier (IFM-1)

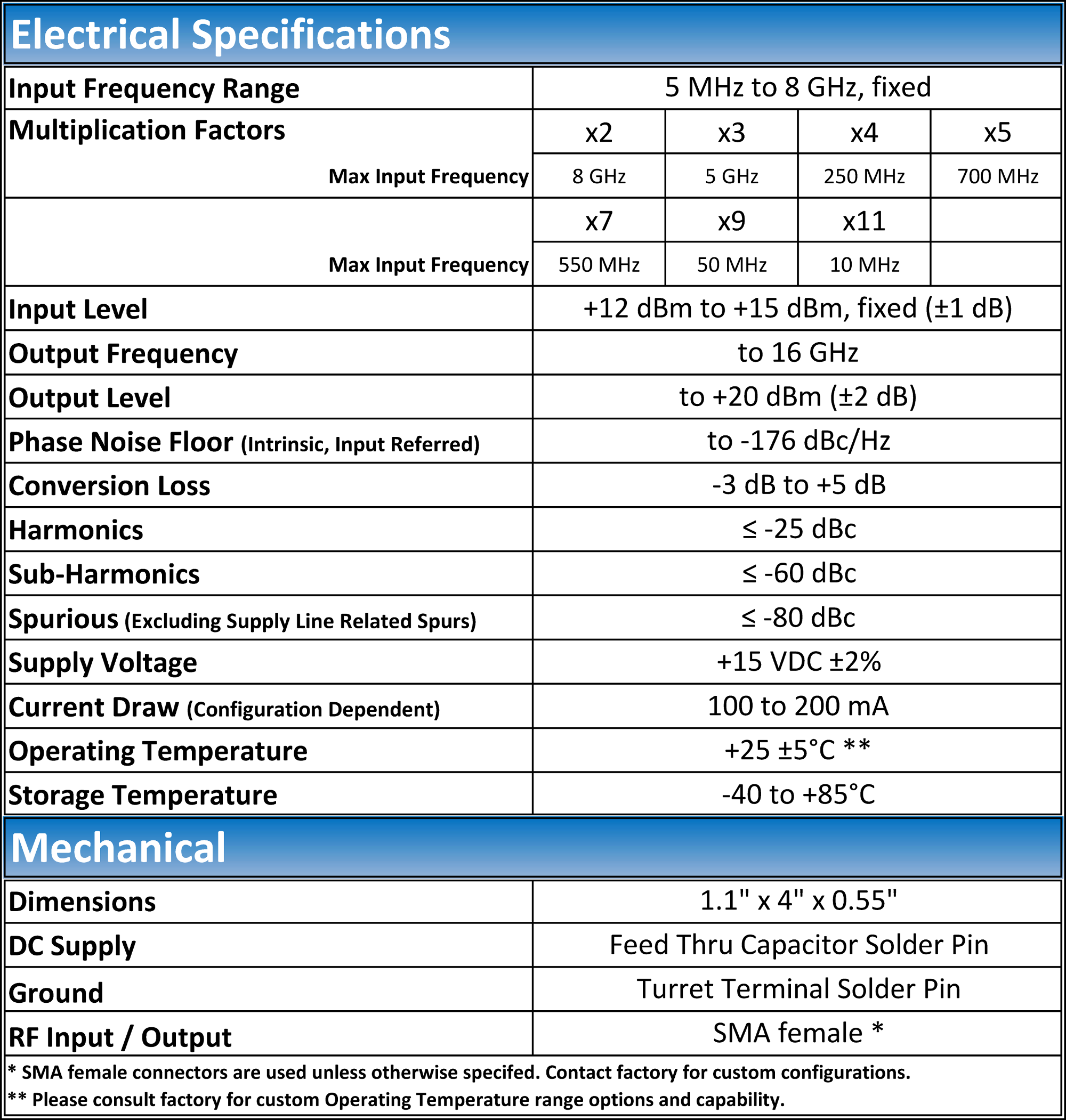

One (1) Multiplier Stage
Input Frequency: 5 MHz to 8 GHz

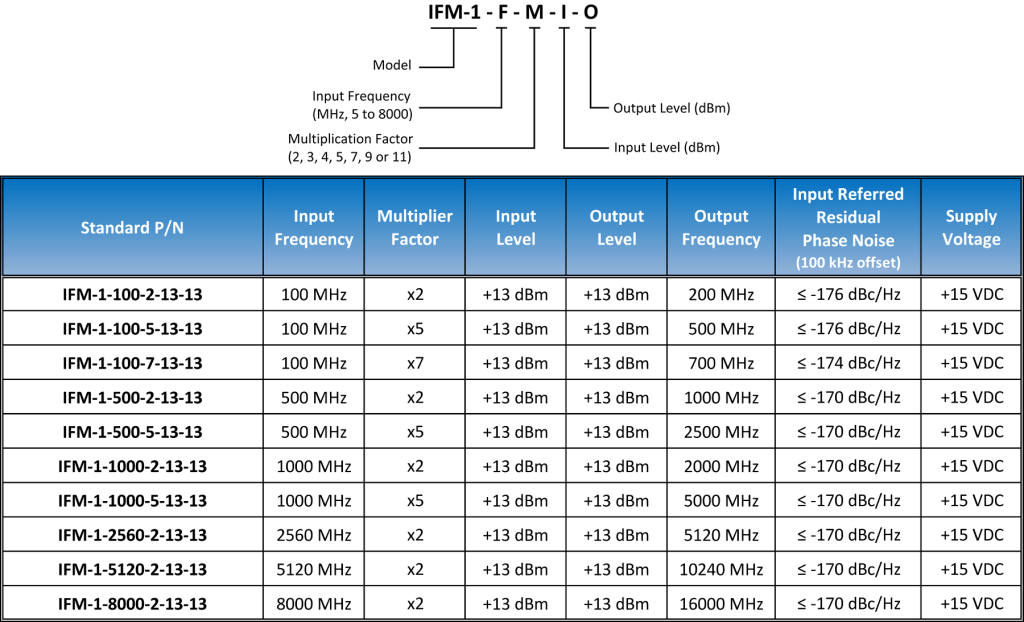

Multiplication Factor: x2, x3, x4, x5, x7, x9 or x11
Output Frequency to 16 GHz
Low Conversion Loss
Intrinsic Phase Noise to -176 dBc/Hz
Integral Filters and Amplifiers
