The IFM-6 is a low noise multiplier module, which combines low noise multipliers, bandpass filters and amplifiers to achieve exceptionally low phase noise, excellent spectral purity and good conversion efficiency. Multiplication factors of x64 to x3200 are available using a combination of up to six (6) standard multipliers (2, 3, 4, 5, 7, 9 and 11) with output frequencies to 4 GHz. The IFM-6 provides input referred phase noise floors as low as -176 dBc/Hz. Please consult our technical staff for assistance in configuring a multiplier to suit your needs.

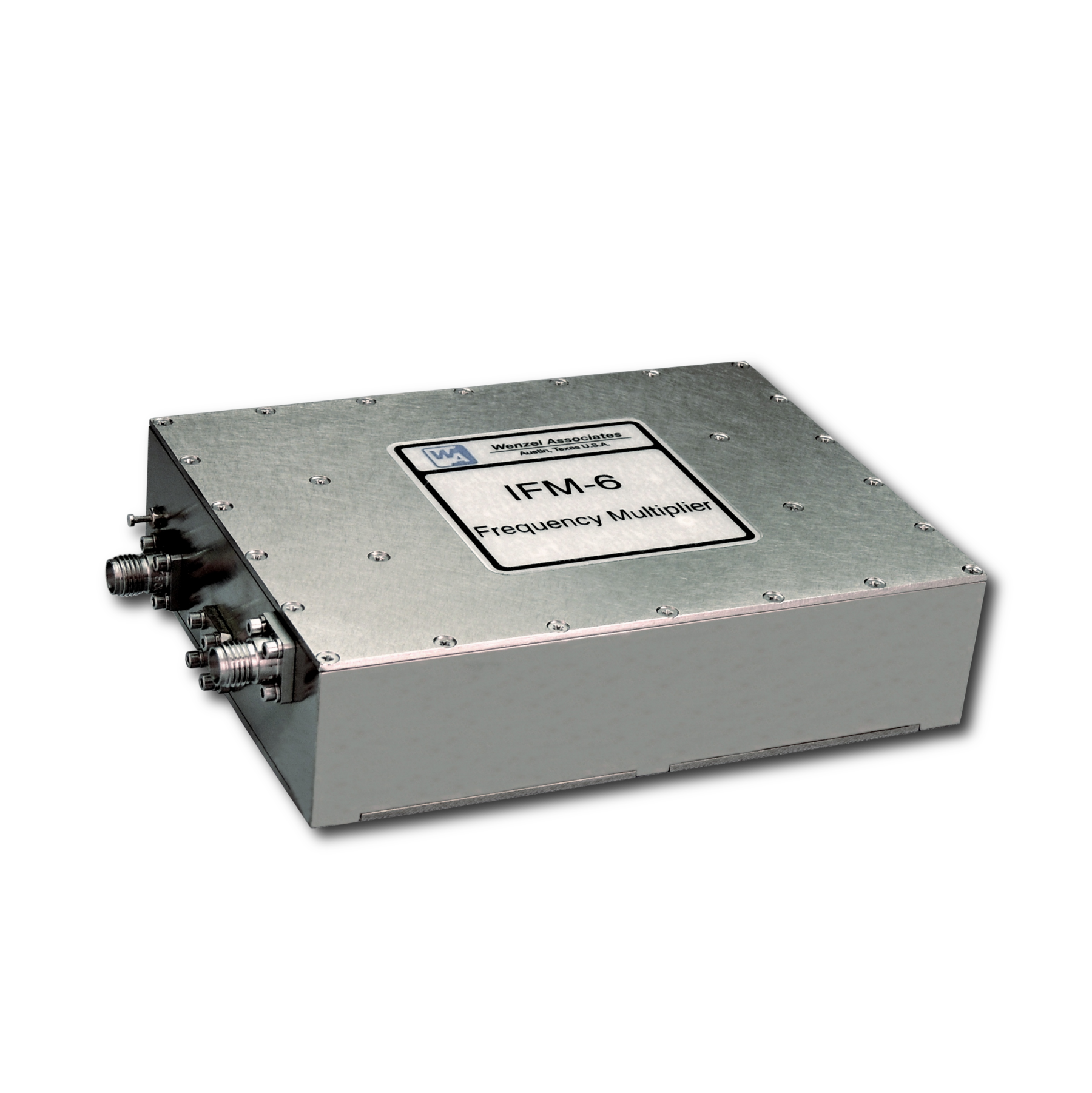

Integrated Frequency Multiplier (IFM-6)
Up to six (6) Multiplier Stages
Input Frequency: 5 MHz to 250 MHz
Multiplication Factors: x64 to x3200
Output Frequency to 4 GHz
Low Conversion Loss
Intrinsic Phase Noise to -176 dBc/Hz
Integral Filters and Amplifiers
Synthesizer Building Block
Communication Systems
Radar Systems
Electronic Warfare Systems
