The IFM-3R is a low noise multiplier module, which combines low noise multipliers, bandpass filters, amplifiers and a voltage regulator to achieve exceptionally low phase noise, excellent spectral purity and good conversion efficiency. Multiplication factors of 8 to 567 are available using a combination of up to three (3) standard multipliers (2, 3, 4, 5, 7, 9 and 11) with output frequencies to 16 GHz. The IFM-3R provides input referred phase noise floors as low as -176 dBc/Hz. Please consult our technical staff for assistance in configuring a multiplier to suit your needs.

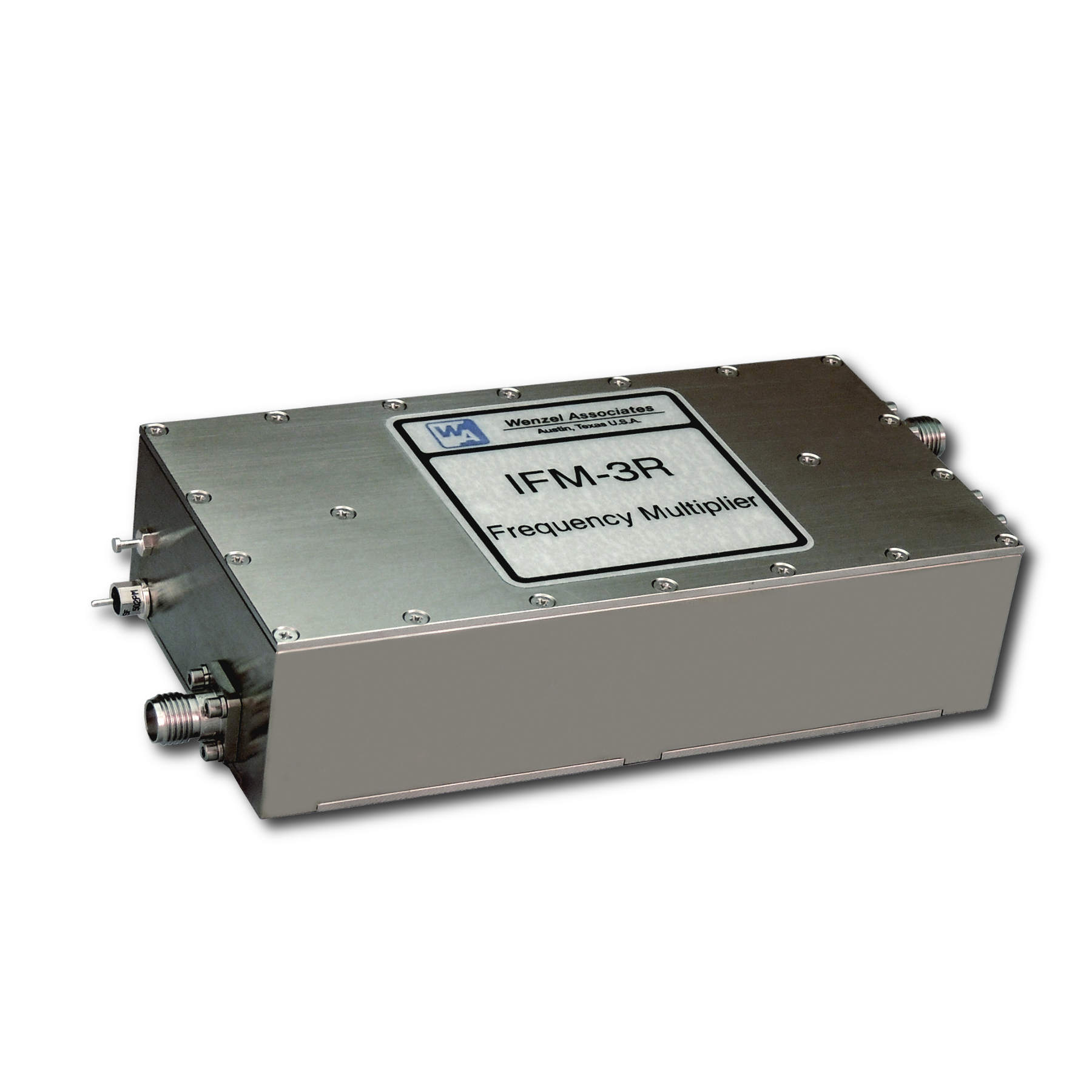

Integrated Frequency Multiplier (IFM-3R)
Up to three (3) Multiplier Stages
Input Frequency: 5 MHz to 2 GHz
Multiplication Factors: x8 to x567
Output Frequency to 16 GHz
Low Conversion Loss
Intrinsic Phase Noise to -176 dBc/Hz
Integral Filters and Amplifiers
Includes Low Noise Voltage Regulator
