    Product Model:
    HF ONYX IV

    inner-page-bg
    product-vhf-banner-img
    product-vhf-banner-img

    DESCRIPTION

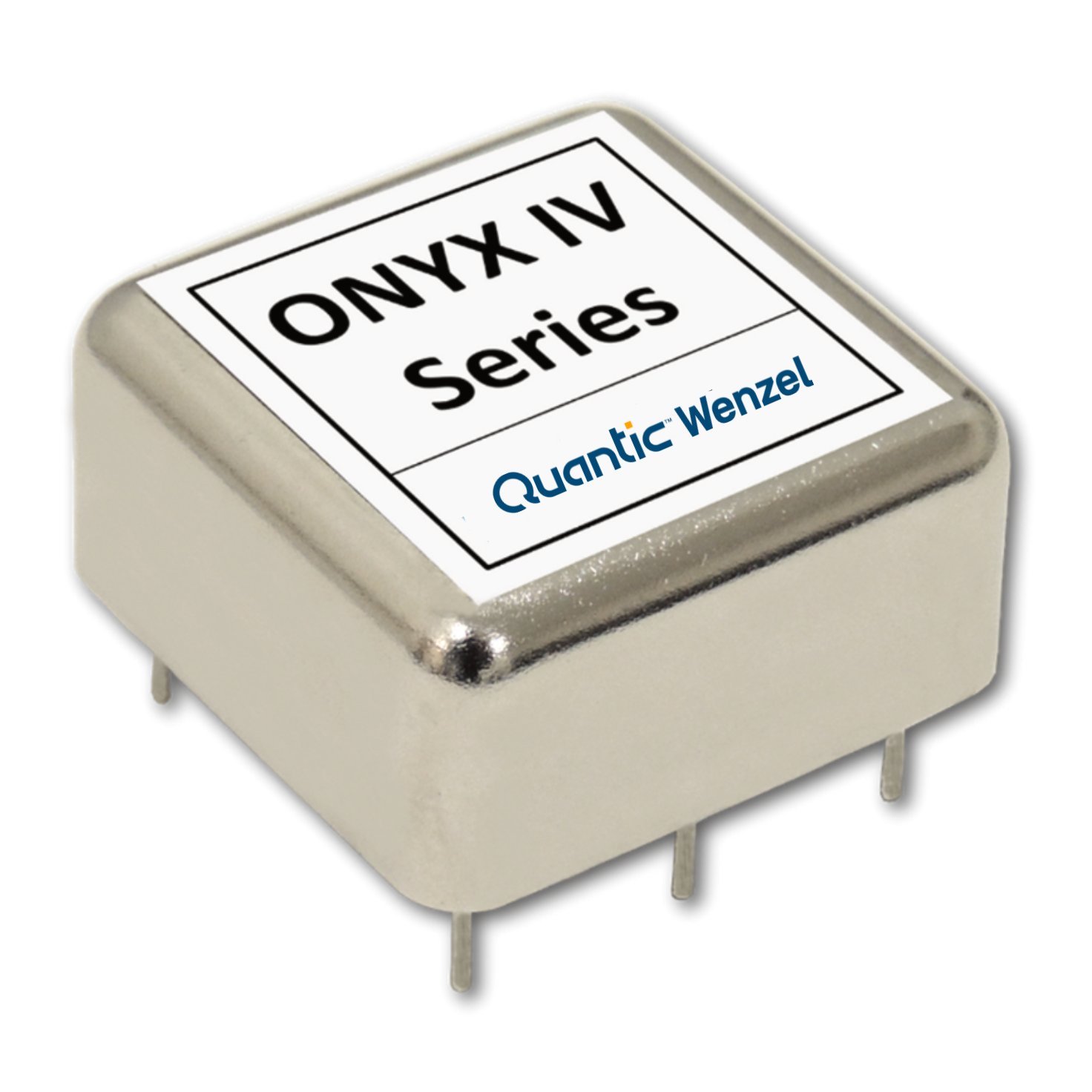

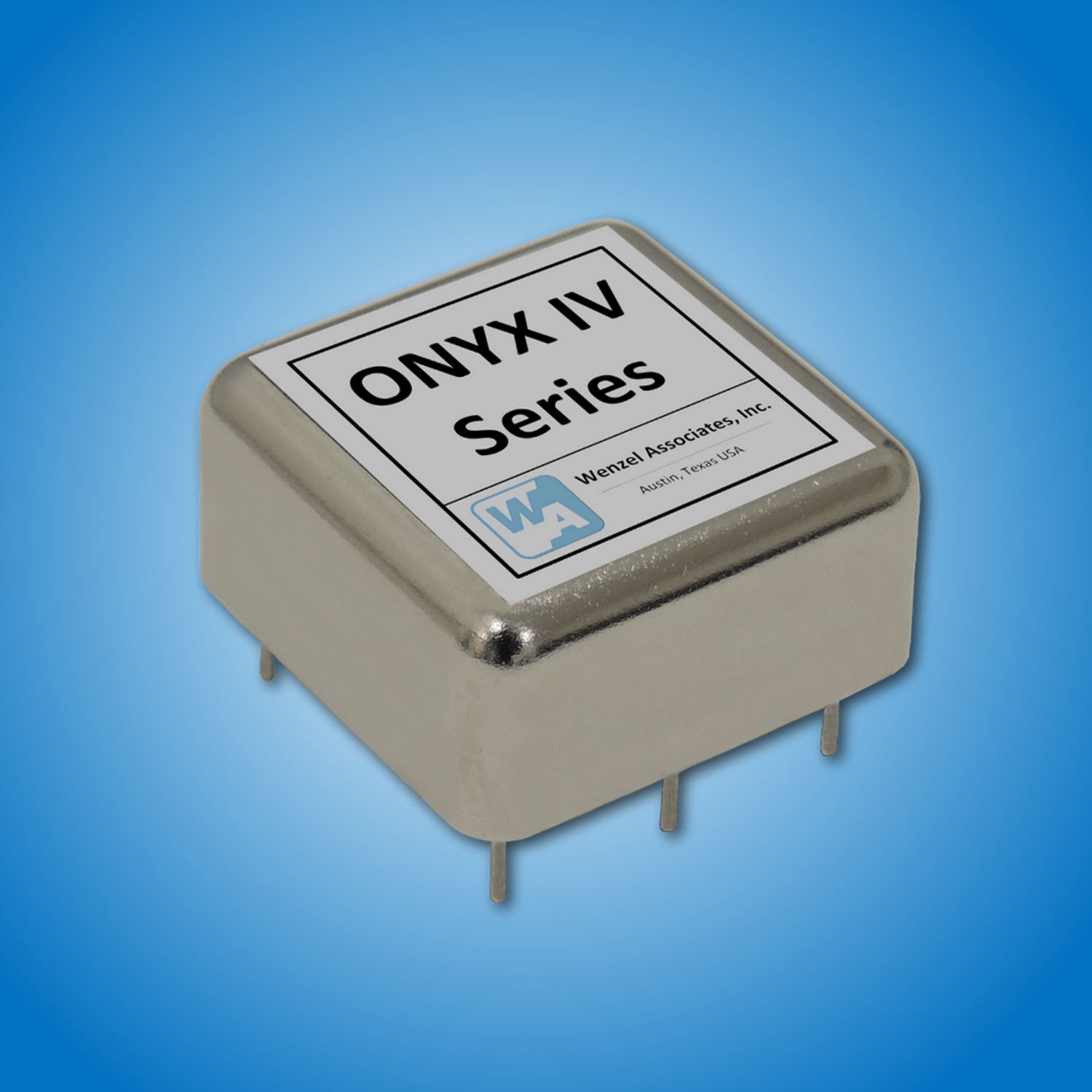

    The HF ONYX IV is a small lightweight rugged OCXO featuring low phase noise, good temperature stability and low g-sensitivity (to <1E-10/g per axis). Designed for Commercial and Military PCB mount applications, it provides excellent phase noise performance during vibration. The nickel-plated steel package is 1” x 1” x 0.5”. An internal voltage regulator is provided for excellent power supply line rejection. Please contact technical staff to discuss custom requirements.



    FEATURES:

    •  Output Frequency: 10 MHz to 25 MHz
    •  Rugged/Low Cost/High Performance
    •  Low Phase Noise (to -176 dBc/Hz)
    •  Low G-Sensitivity (to 1E-10/g per axis)
    •  Thru Hole PCB Mount
    •  Internal Voltage Regulator



    APPLICATIONS:

    •  Military Applications
    •  Airborne, Ground, Shipboard
    •  Test Equipment
    •  Synthesizers
    •  Base Stations
    •  Portable Transceivers



    Features

    Frequencies from 10 MHz to 25 MHz, fixed
    Standard and Premium Phase Noise Options
    Small Package; Low Profile (0.5″ ht)
    Solder Sealed Steel Can
    Thru Hole (PCB) Mount
    Output: Sine, +10 dBm, Standard; TTL, Optional
    Dual Output Option (One Sine; One TTL)
    Low-G Sensitivity to 1E-10/g per axis

    Applications

    Airborne
    Mobile Transceivers
    Instrument Reference

    Typical Specifications

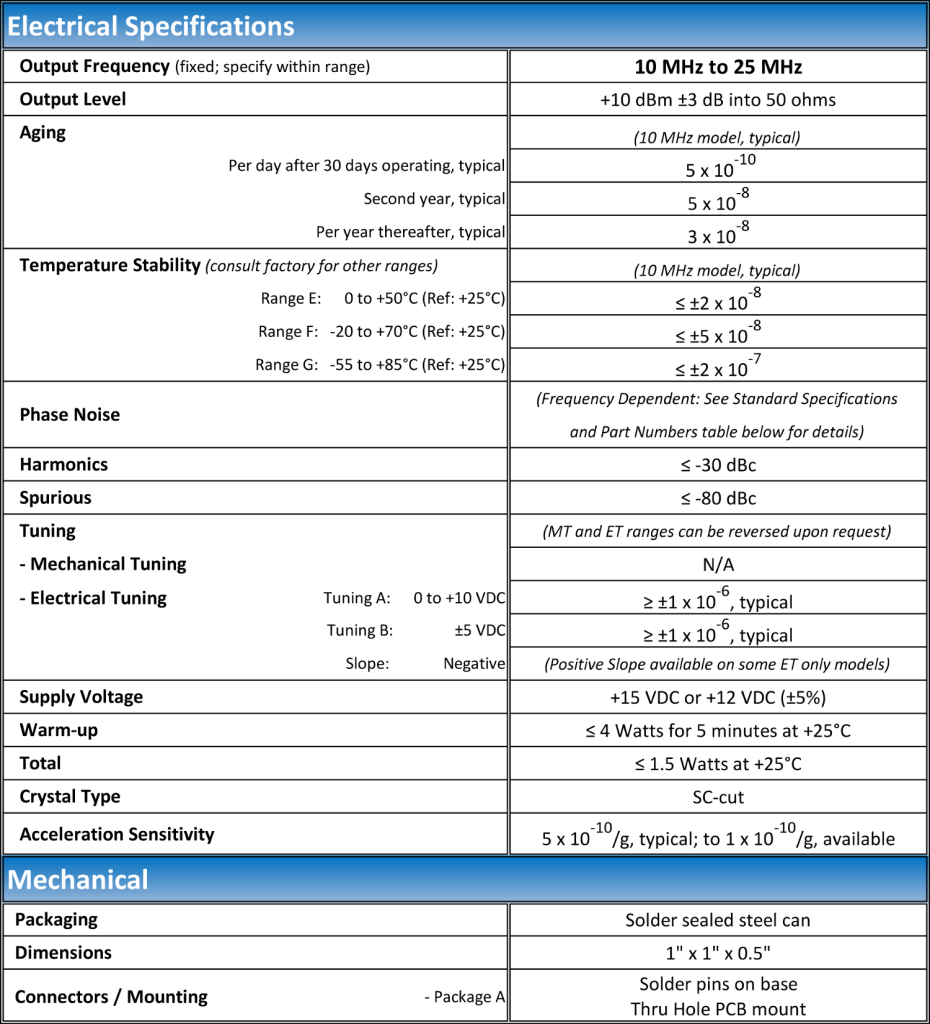

    HF ONYX IV Typical Specs

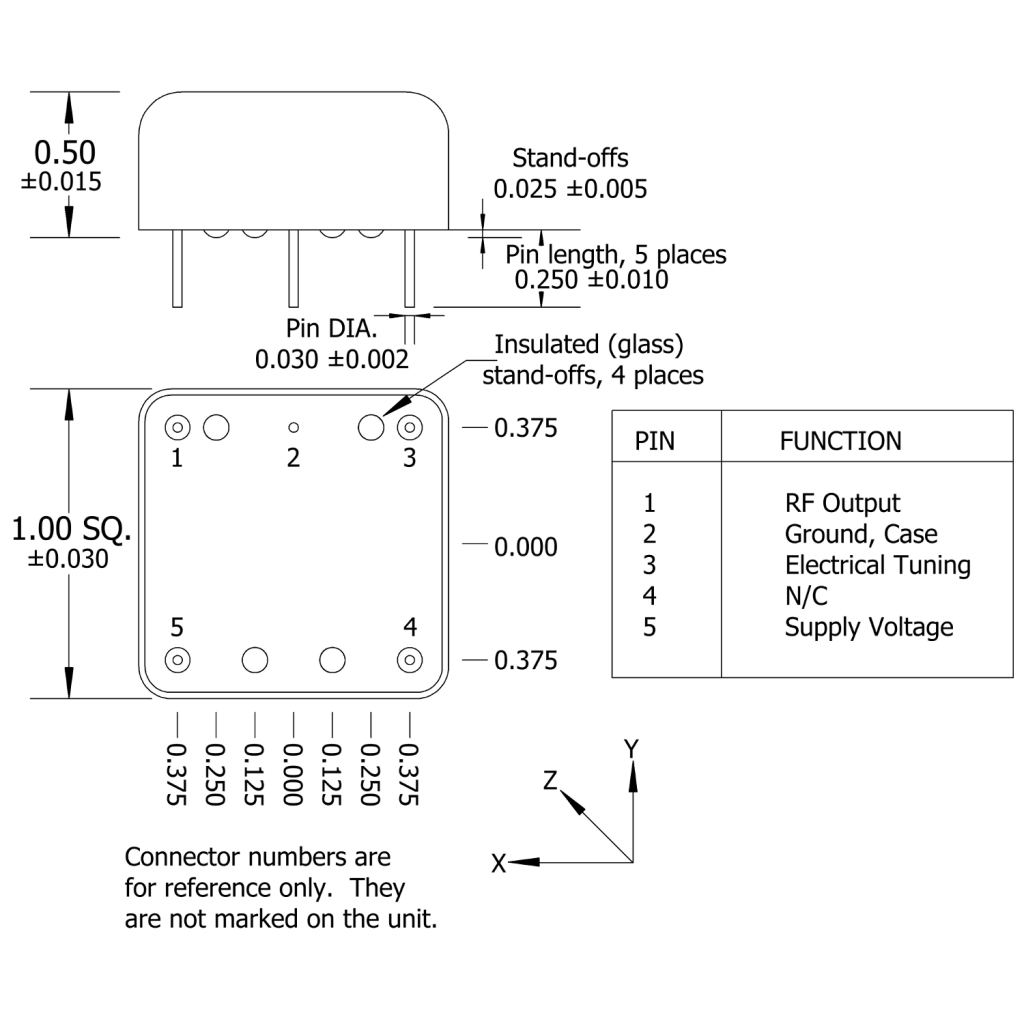

    Mechanical Drawing

    HF ONYX IV mechanical
