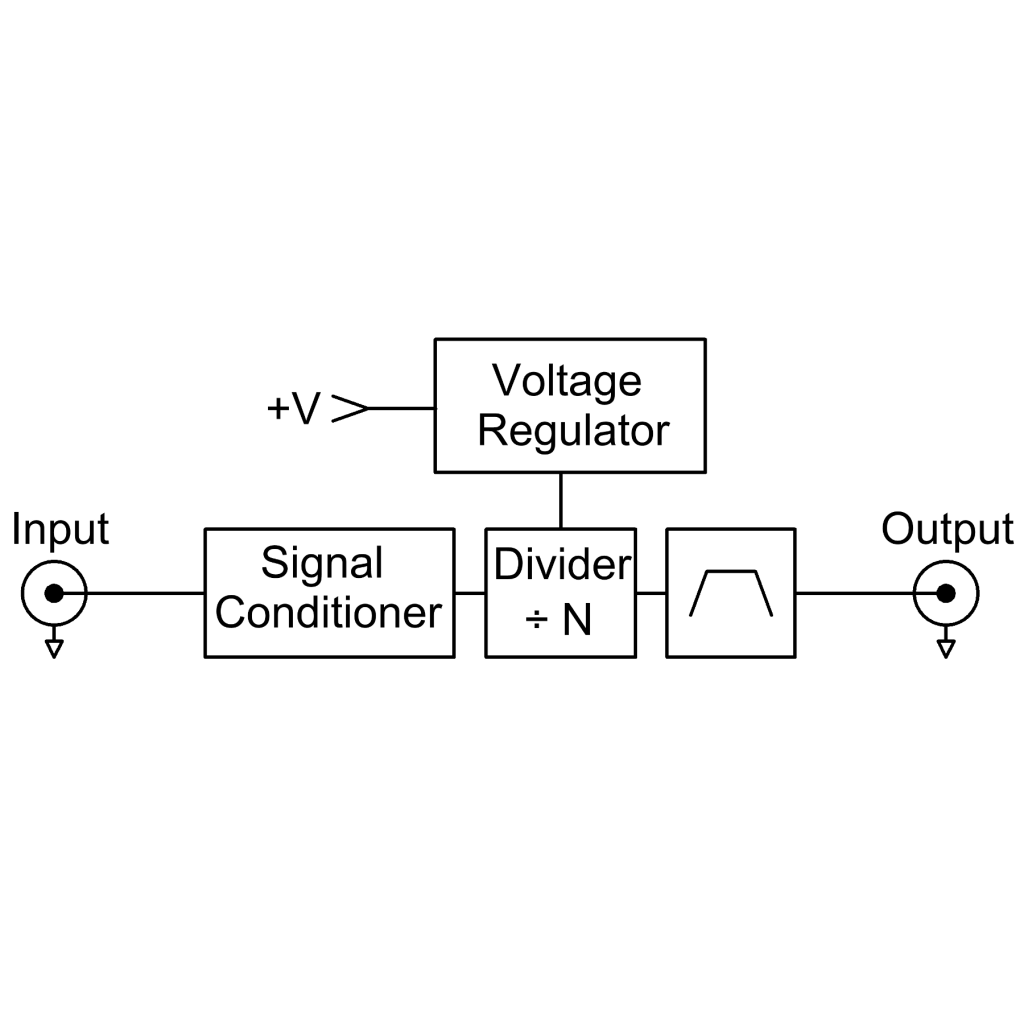

The LNFDN is a frequency divider module with a customer specified division factor from 2 to 256 for input frequencies up to 100 MHz. This module features a divider, an input signal conditioner, an output bandpass filter for excellent harmonic suppression and a low noise voltage regulator for power supply spurious rejection, all integrated into a single housing. The output bandpass filter can be included as required or bypassed for a broadband response (TTL compatible square wave output).
Low Noise Frequency Divide-By-N

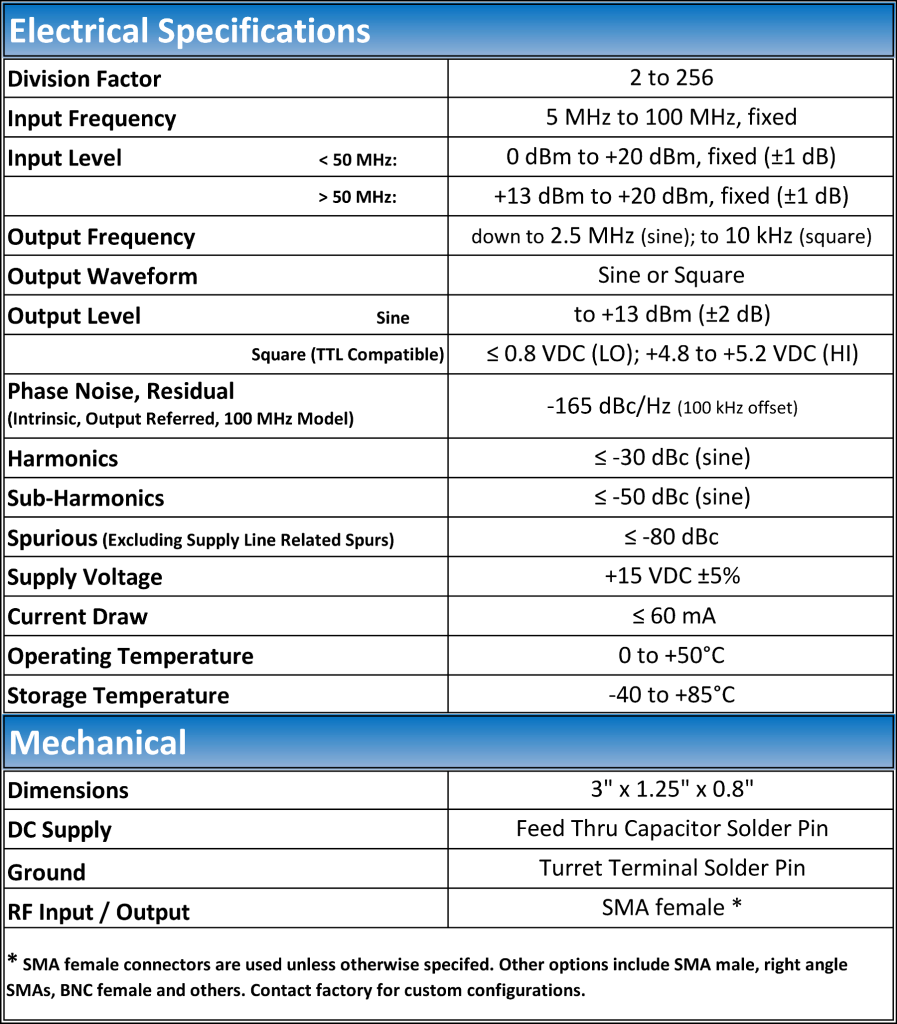

Input Frequency from 5 MHz to 100 MHz, fixed

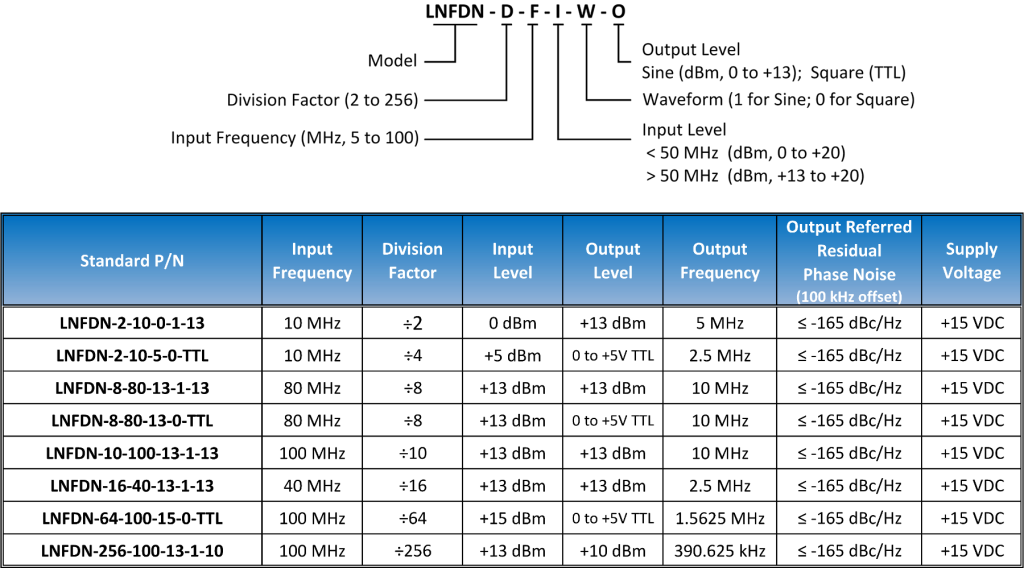

Division Factor: Customer Specifed from 2 to 256
Output Waveform: Sine or Square Wave
Output Level: Up to +13 dBm
Intrinsic Phase Noise Floor to -165 dBc/Hz (Output Referred)
Integral Bandpass Filters, Square-Up Circuit and VReg
Current Draw: 60 mA
Nickel-Plated Machined Aluminum Housing
SMA(f) Input and Output Connectors, Standard
Synthesizer Building Block
Communication Systems
Radar Systems
Electronic Warfare Systems
