The LNDD is a frequency doubler that provides excellent phase noise performance for outputs to 1 GHz with low conversion loss. This module features a Schottky Diode doubler with an integrated bandpass filter to control unwanted multiplier products and a low noise amplifier to provide close to 9 dB conversion loss. The diode doubler is designed for a typical input level of +12 dBm to ensure optimal performance. Common amplifiers are offered for flexibility in configuring input/output levels (see amplifier selection table). Please consult our technical staff for assistance in configuring a multiplier to suit your input and output requirements.

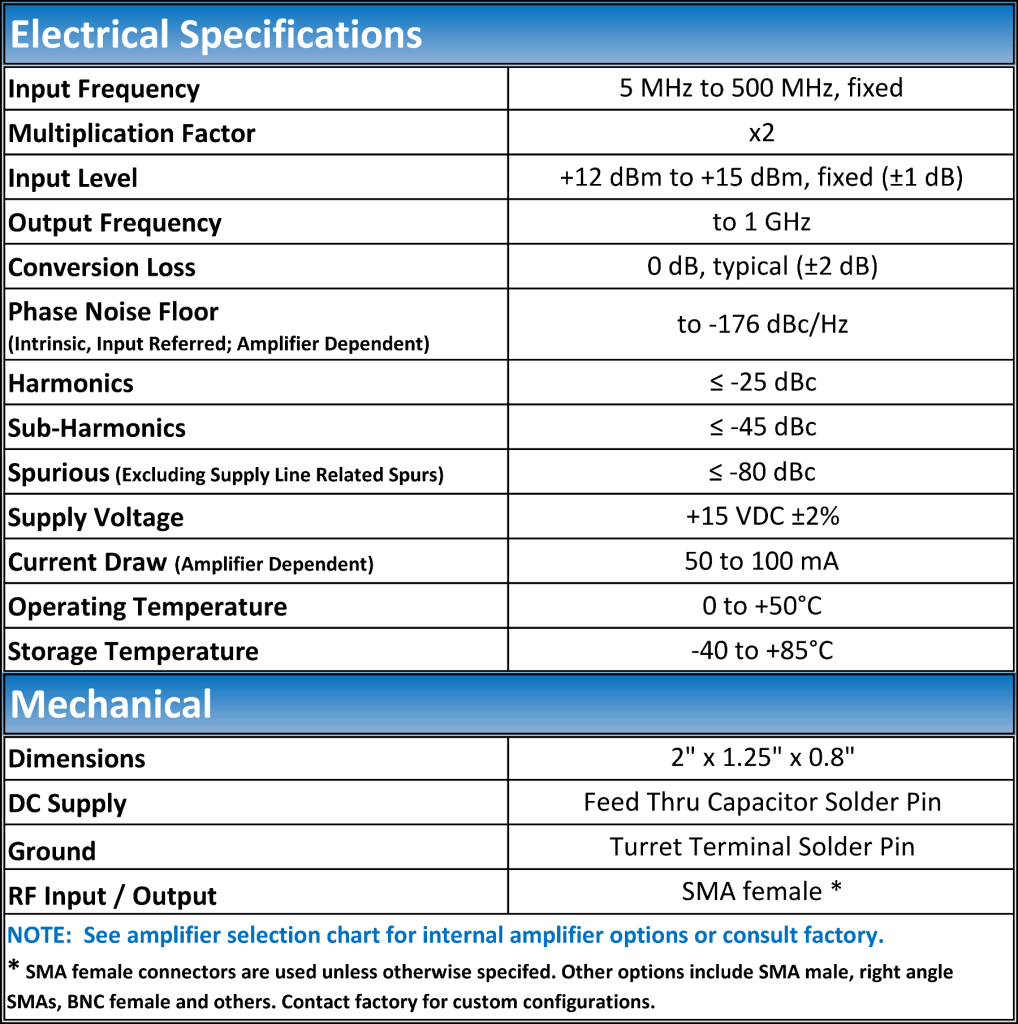

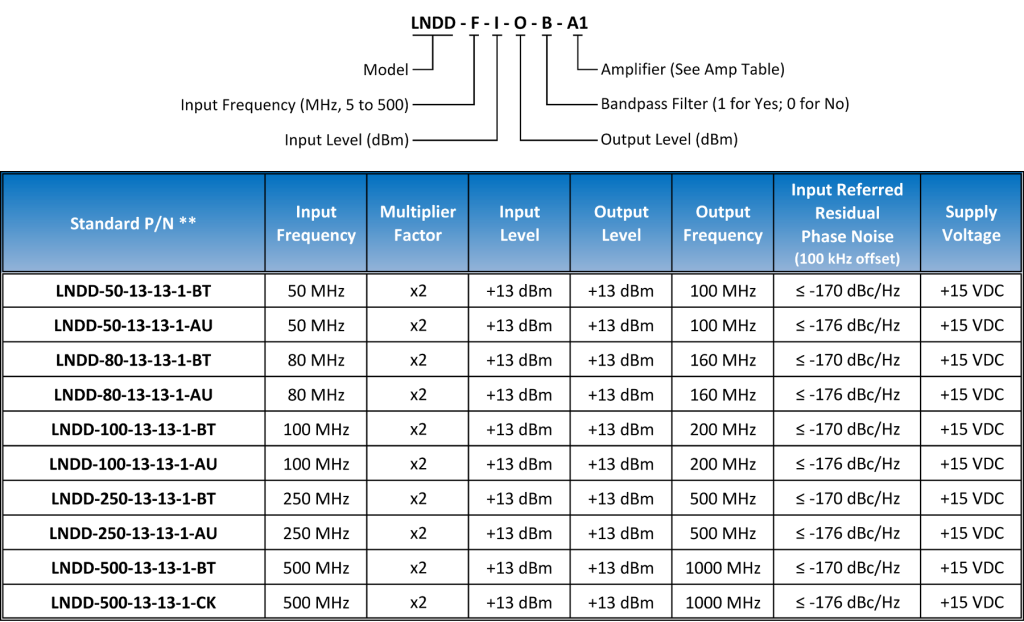

Low Noise Diode Doubler
Multiplcation Factor: x2
Input Frequency from 5 MHz to 500 MHz, fixed
Output Frequencies to 1 GHz
Current Draw: 50 mA to 100 mA (amplifier dependent)
Intrinsic Phase Noise Floor to -176 dBc/Hz (Input Referred)
Conversion Loss: 0 dB, typical
Integral Bandpass Filters and Amplifier

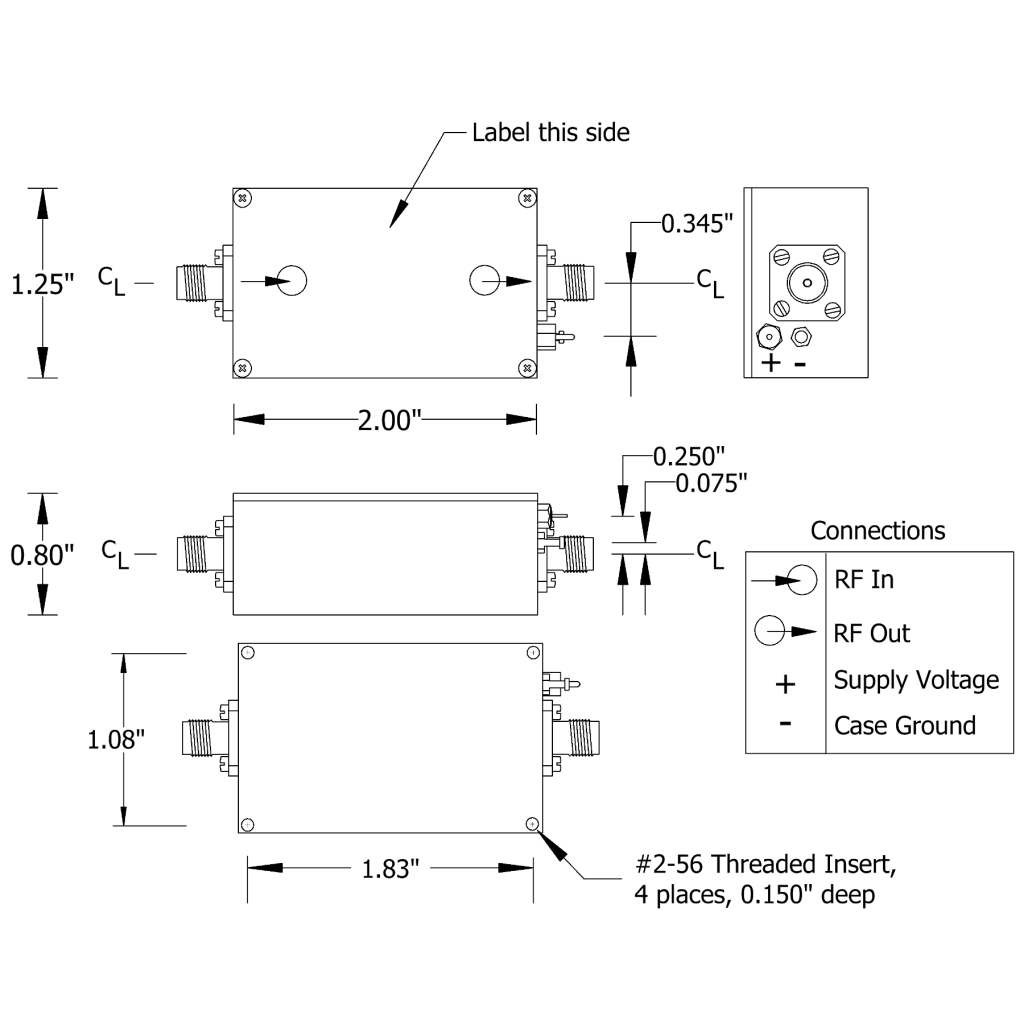

Nickel-Plated Machined Aluminum Housing
SMA(f) Input and Output Connectors, Standard
